Exploded View

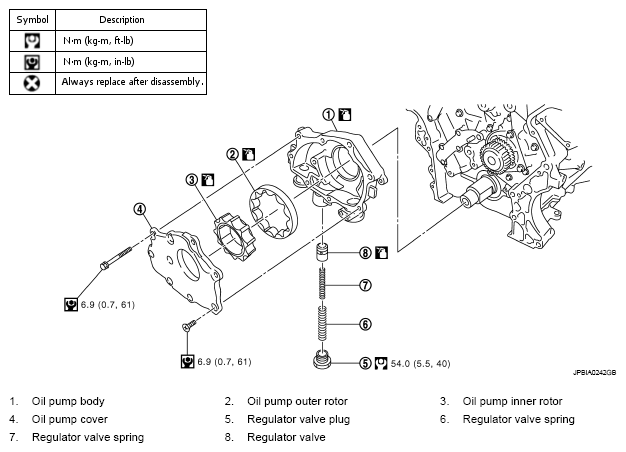

Fig 1: Exploded View Of Oil Pump With Torque Specifications

G05224155

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol marks in the figure.
