Exploded View

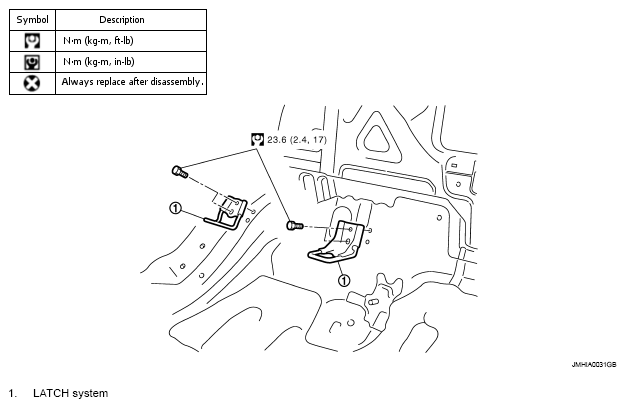

Fig 1: Exploded View Of Latch System For Children With Torque Specifications

G05224515

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "EXPLODED VIEW " for symbols in the figure.
