Exploded View: Disassembly
Type: S114-932

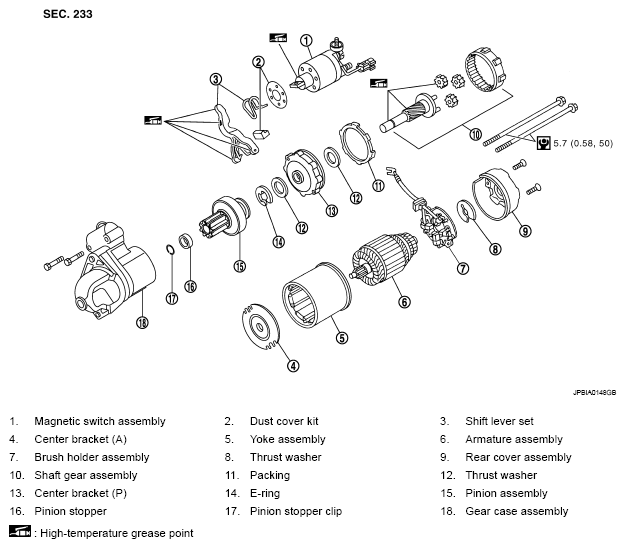

Fig 1: Disassembling View Of Starter Motor With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
