lemon-mirror
:
Home
>>
Infiniti
>>
2008
>>
G37 Base
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
On-Vehicle Repair
>>
Starter Motor
>>
Exploded View
>>
Removal
Exploded View: Removal

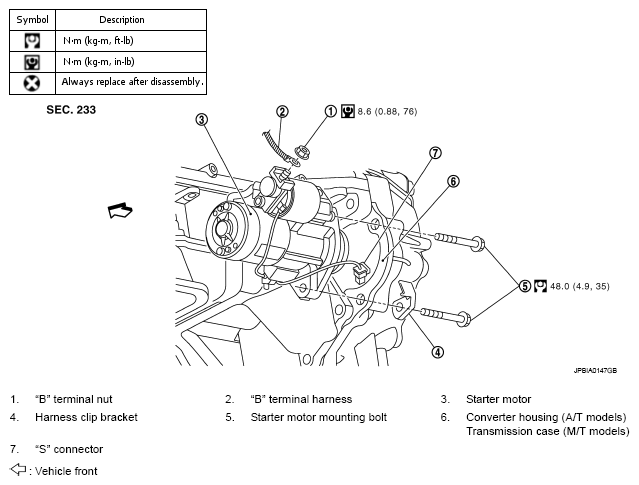

Fig 1: Exploded View Of Starter Motor With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
