Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Function Diagnosis
>>
A/T Control System
>>
System Diagram
System Diagram

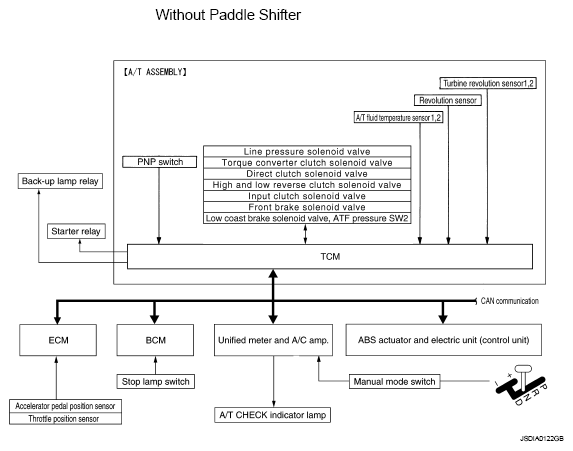

Fig 1: A/T Control System Diagram (Without Paddle Shifter)
Courtesy of NISSAN MOTOR CO., U.S.A.

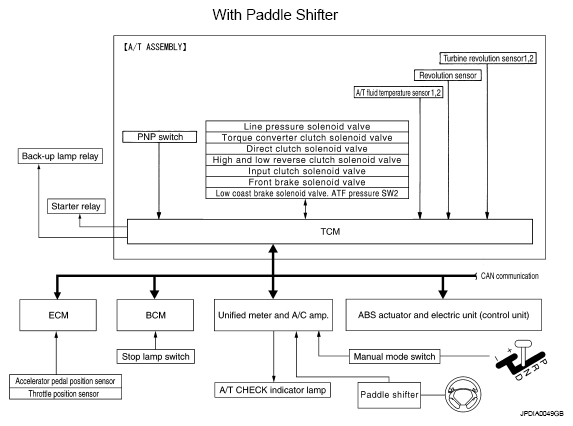

Fig 2: A/T Control System Diagram (With Paddle Shifter)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
