Home
>>
Infiniti
>>
2008
>>
G37 Base
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
On-Vehicle Repair
>>
Paddle Shifter
>>
Exploded View
Exploded View

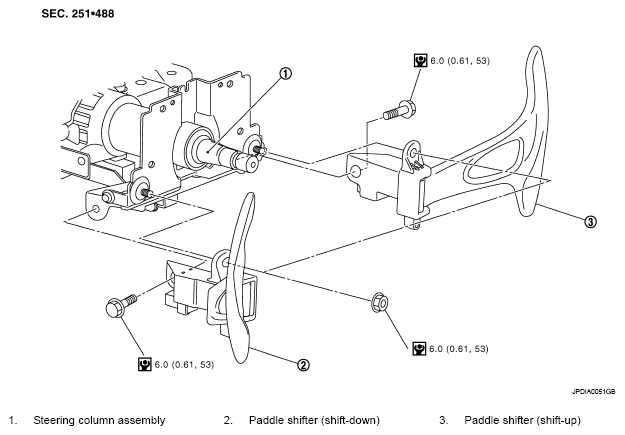

Fig 1: Exploded View Of Paddle Shifter
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
