Exploded View
Exploded View

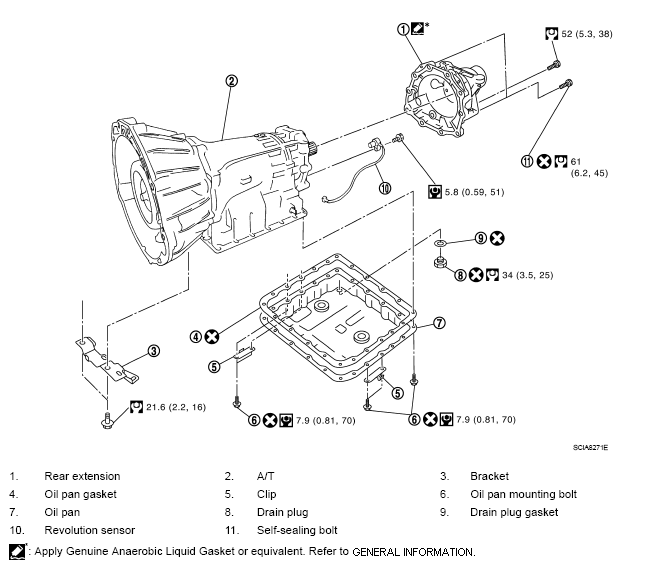

Fig 1: Exploded View Of Revolution Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described on the above.
