Exhaust System: Components

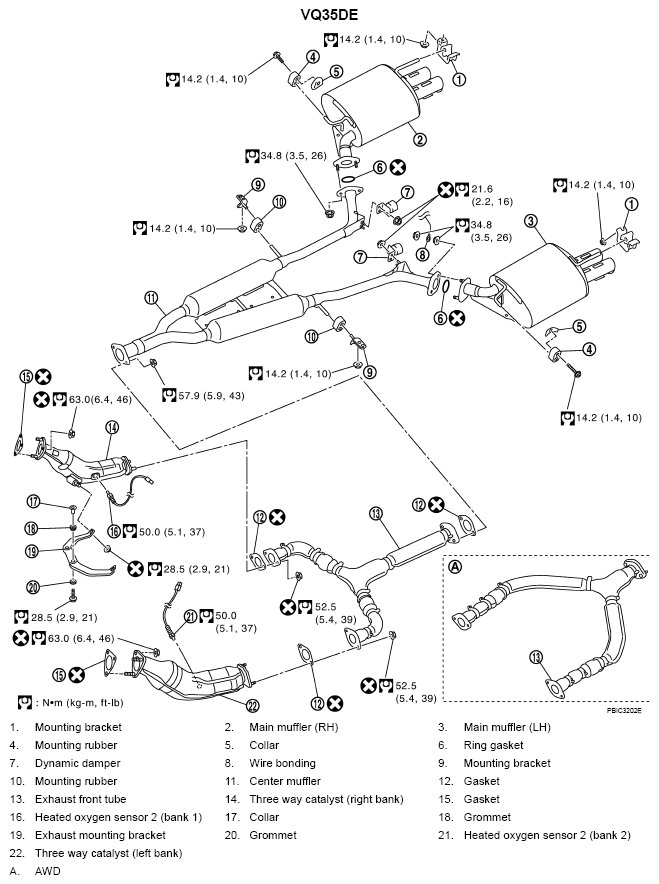

Fig 1: Exhaust System Replacement Components With Torque Specifications (VQ35DE)
G05211226Courtesy of NISSAN MOTOR CO., U.S.A.

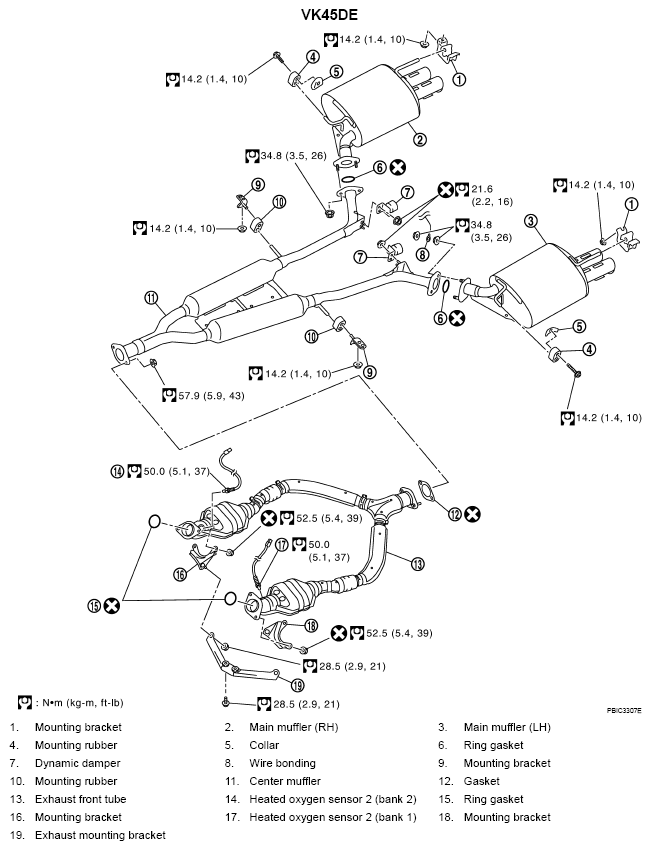

Fig 1: Exhaust System Replacement Components With Torque Specifications (VK45DE)
G05211228Courtesy of NISSAN MOTOR CO., U.S.A.
