Disassembly and Assembly: Components

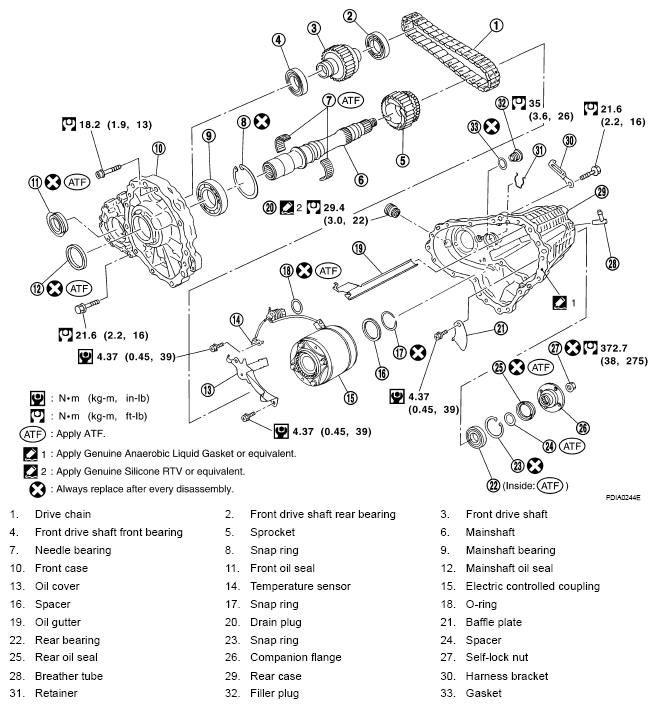

Fig 1: Exploded View Of Transfer Assembly Components With Torque Specifications
G05211298Courtesy of NISSAN MOTOR CO., U.S.A.
