Rear Speed Sensor: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

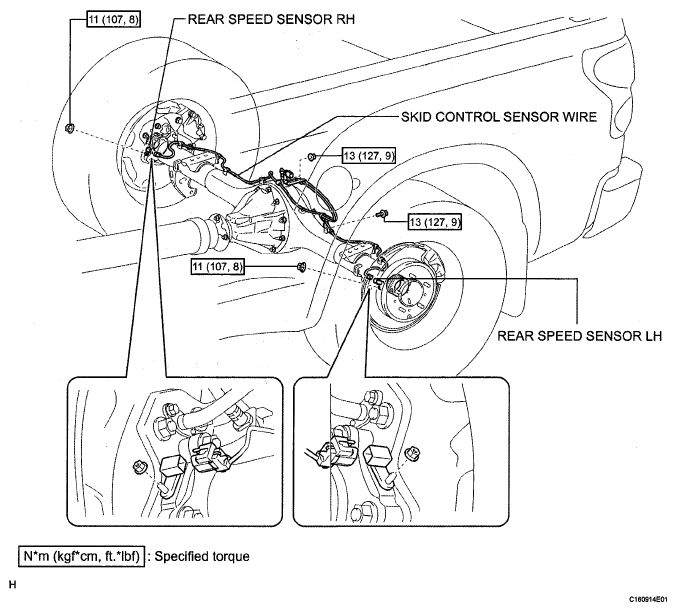

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications
G05159860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
