Home >> Infiniti >> 2009 >> EX35 Base, AWD >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> On-Vehicle Repair >> Starter Motor >> Exploded View >> Disassembly

Exploded View: Disassembly

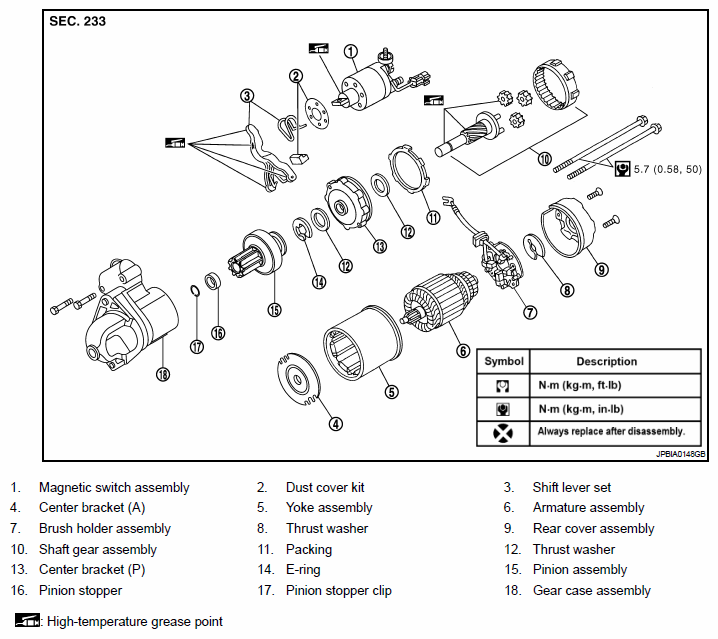

Fig 1: Exploded View Of Starter Motor With Torque Specifications

G06301647

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
