Exploded View

CAUTION: Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to "CONFIGURATION (BCM) : DESCRIPTION ".

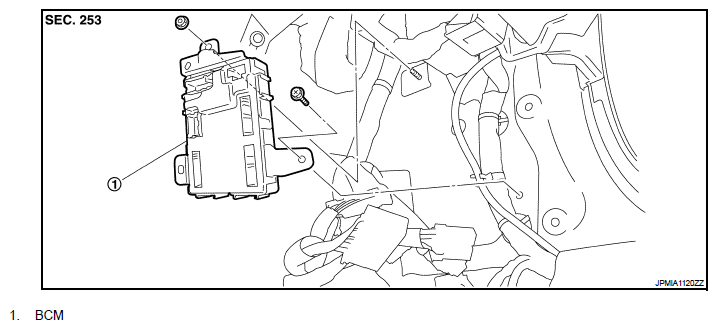

Fig 1: Identifying BCM
G05983062Courtesy of NISSAN MOTOR CO., U.S.A.
