Home >> Infiniti >> 2009 >> FX50 >> Repair and Diagnosis >> Steering >> Power Steering >> Steering System >> On-Vehicle Repair >> Lower Shaft >> Exploded View

Exploded View

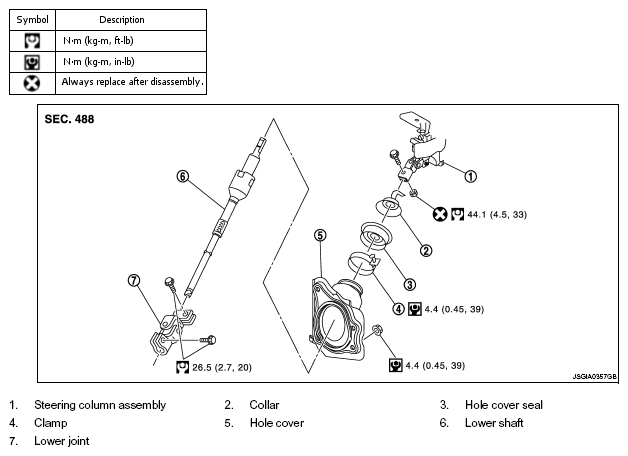

Fig 1: Exploded View Of Lower Shaft With Torque Specifications

G05984453

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
