Exploded View

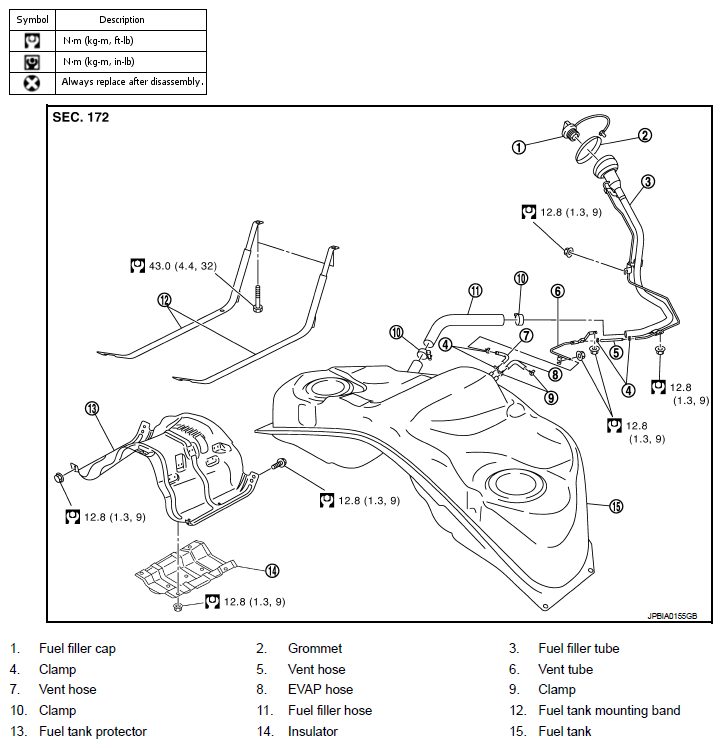

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

G05972960

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for to symbols in the figure.
