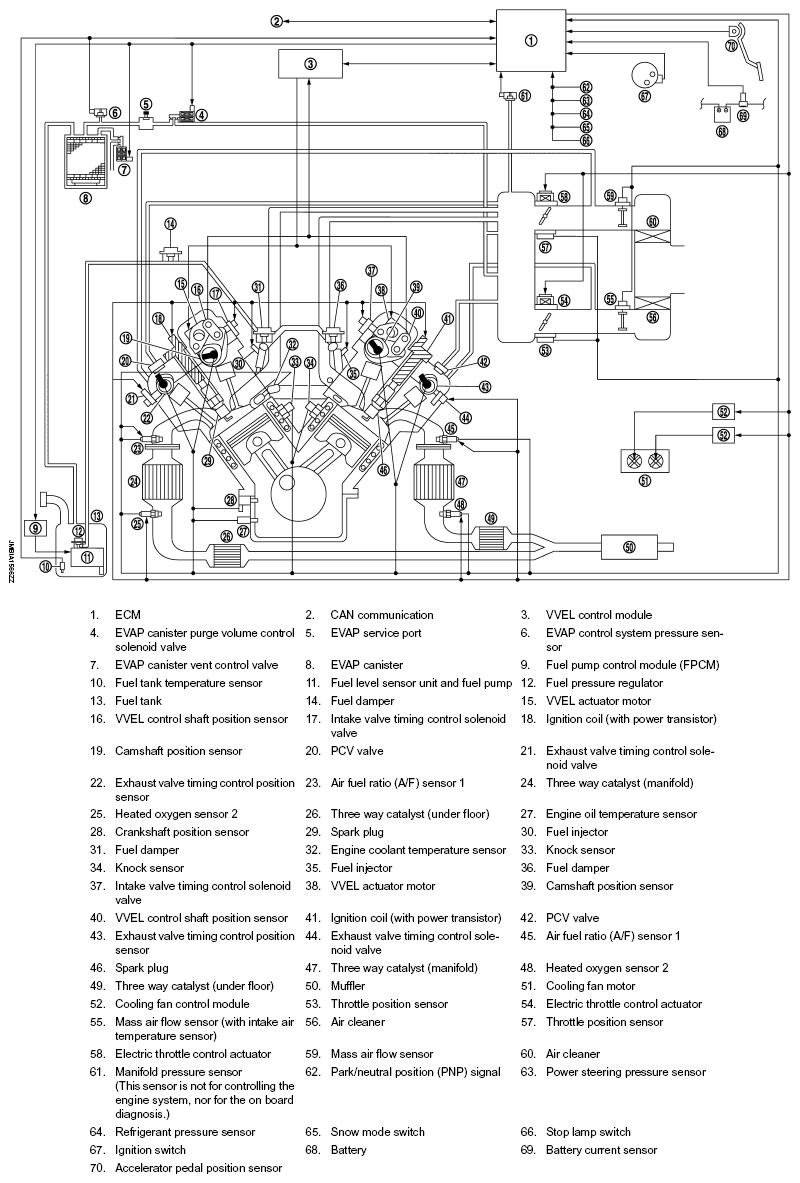

Home >> Infiniti >> 2010 >> FX50 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (VK50VE) - Diagnostic Introduction >> Function Diagnosis >> Engine Control System >> System Diagram
