2WD : Exploded View
>>
Disassembly
2WD : Exploded View: Disassembly

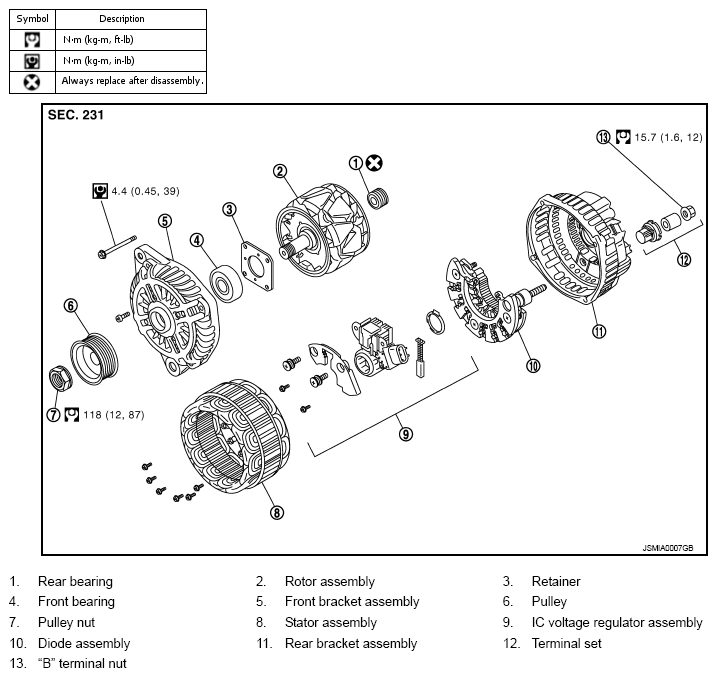

Fig 1: Exploded View Of Alternator With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
