Cross-Sectional View

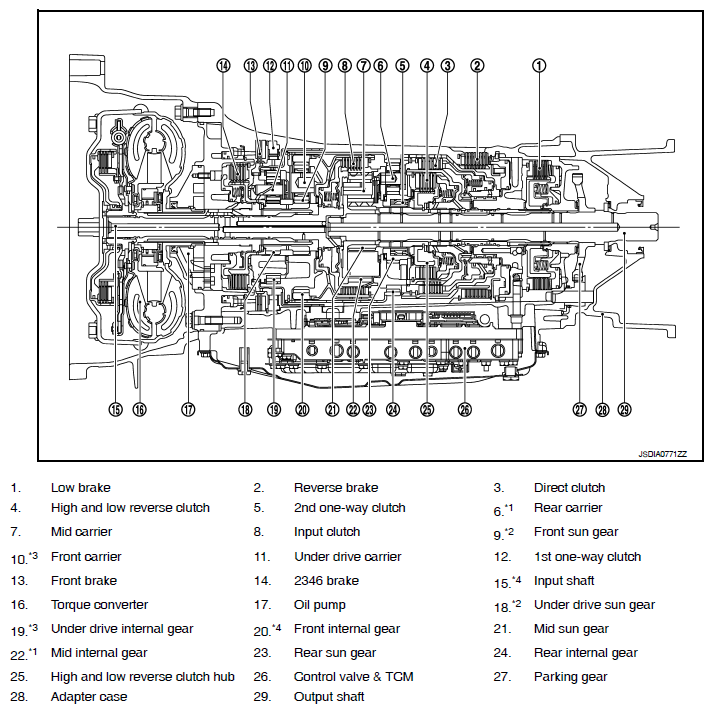

Fig 1: Cross-Sectional View Of Shift Mechanism

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: 6 and 22 are one unit.

*2: 9 and 18 are one unit.

*3: 10 and 19 are one unit.

*4: 15 and 20 are one unit.
