Exploded View

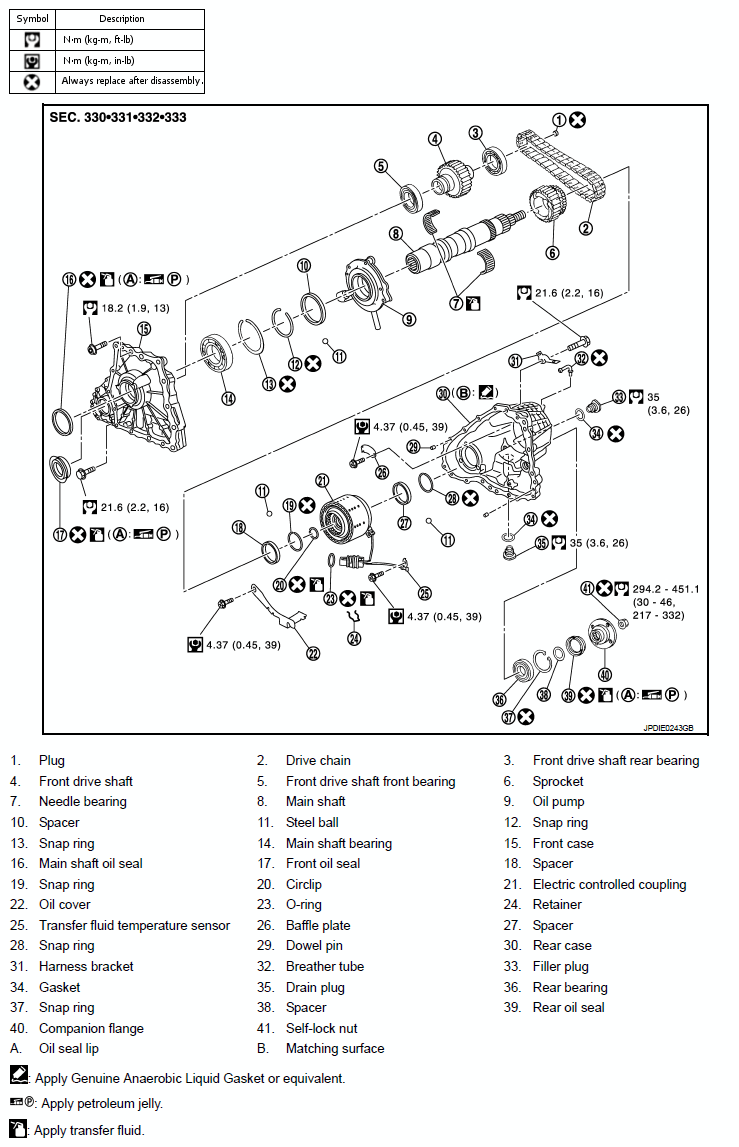

Fig 1: Front Drive Shaft And Drive Chain Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described above.
