Quick Connector

CAUTION:

After connecting fuel tube quick connectors, check quick connectors are secure.

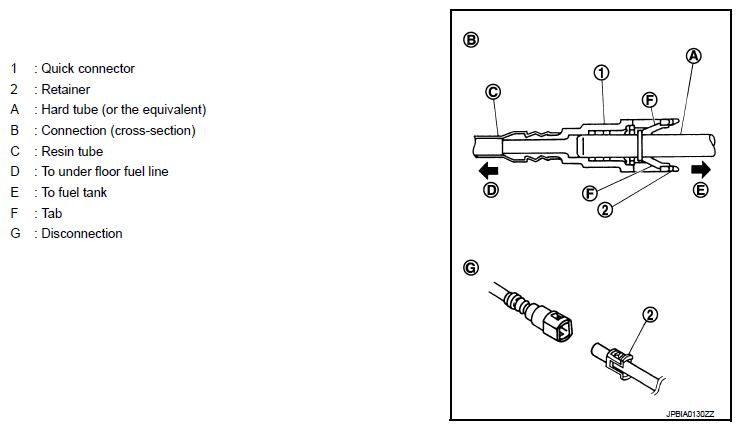

Fig 1: Identifying Quick Connector Parts
Courtesy of NISSAN MOTOR CO., U.S.A.
Ensure that connector and resin tube never contact any adjacent parts.
