Home >> Infiniti >> 2011 >> FX50 >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Unit Disassembly And Assembly >> Oil Pump >> Exploded View

Exploded View

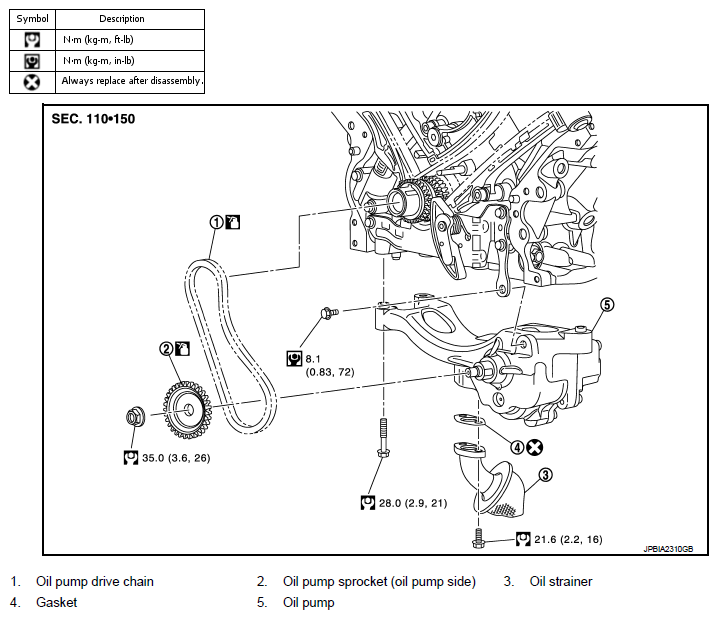

Fig 1: Exploded View Of Oil Pump With Torque Specifications

G07233362

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
