Oil Pump: Assembly

Note the following, and assemble in the reverse order of disassembly.

• Install oil pump inner rotor with the groove faced to oil pump cover side.

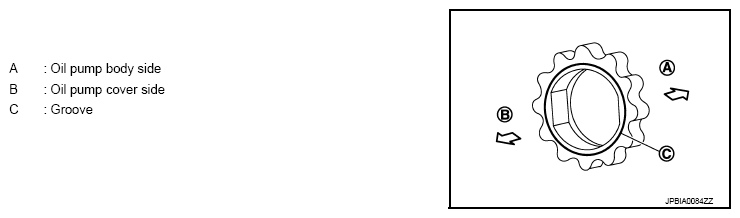

  Fig 1: Identifying Oil Pump Inner Rotor

  Courtesy of NISSAN MOTOR CO., U.S.A.
