Home >> Infiniti >> 2011 >> M37 Base >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System -- M37/M56 >> Removal And Installation >> Fuel Tank >> Exploded View

Exploded View

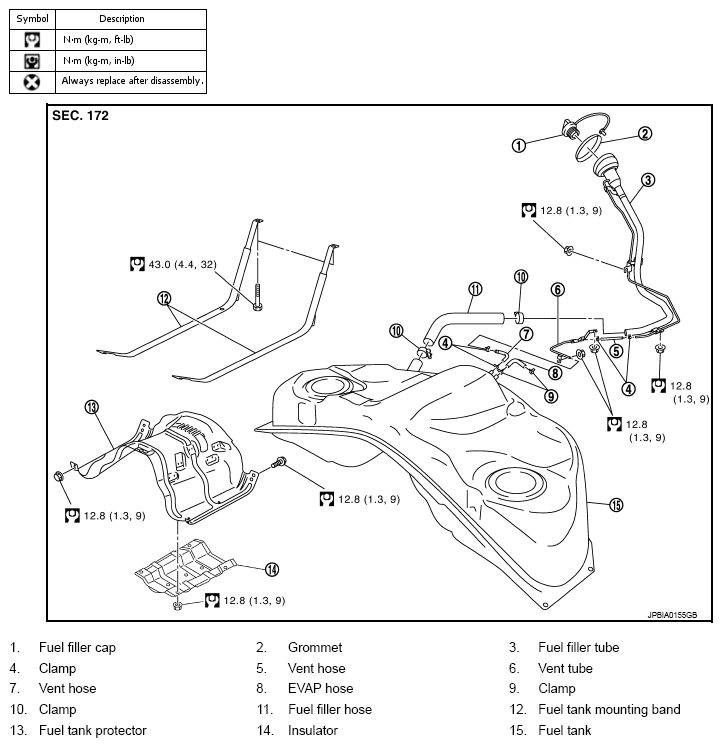

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

G07021689

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for to symbols in the figure.
