Exploded View

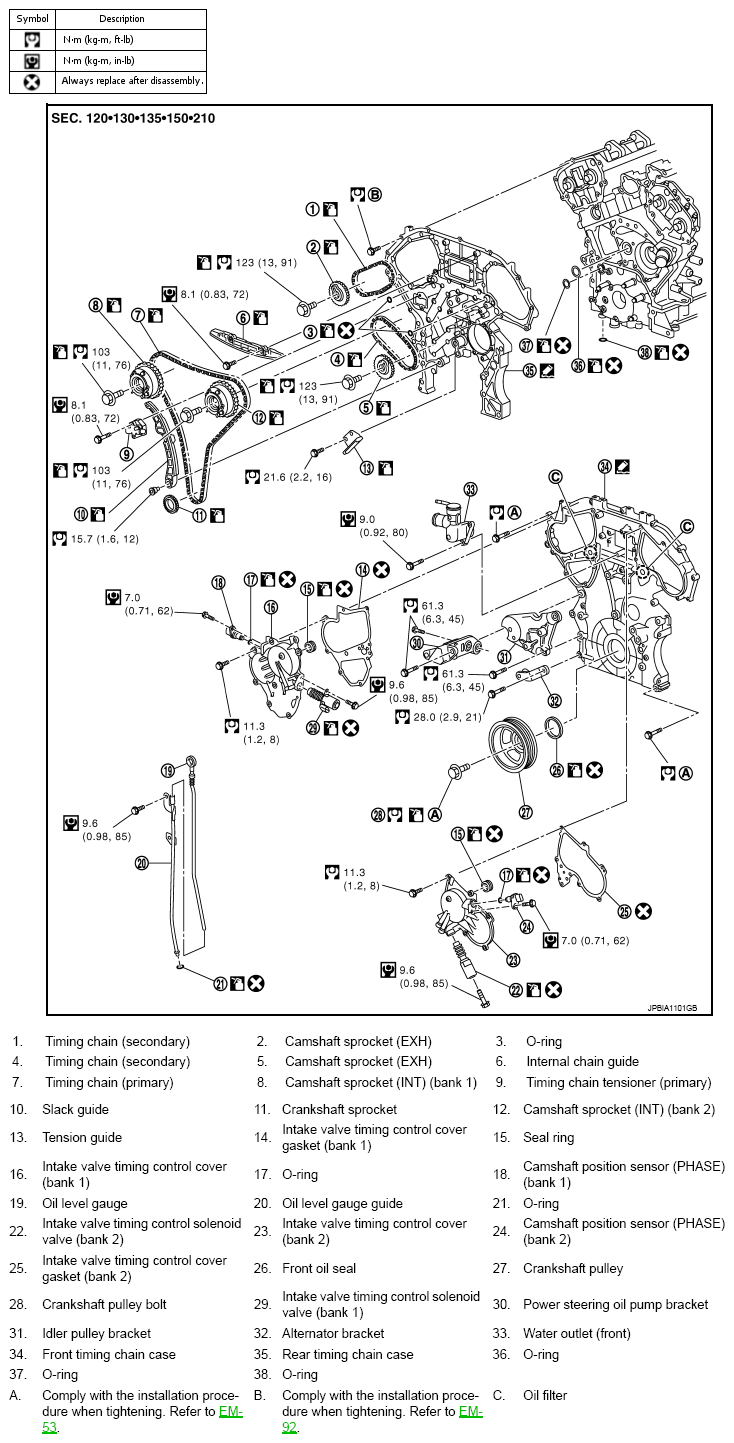

Fig 1: Exploded View Of Timing Chain With Torque Specifications

G07017463

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol marks in the figure.
