2WD : Exploded View

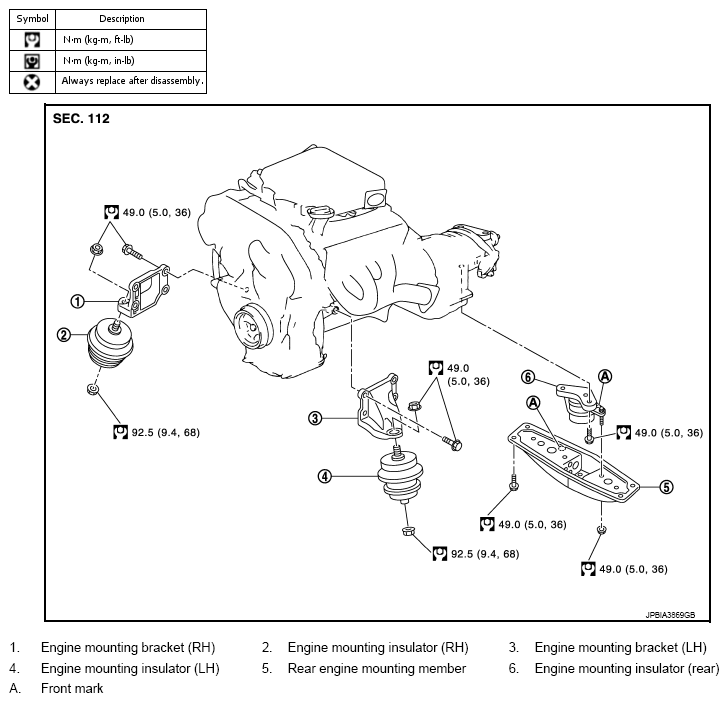

Fig 1: Exploded View Of Engine Assembly With Torque Specifications (2WD)

G07017517

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
