Exploded View: Disassembly

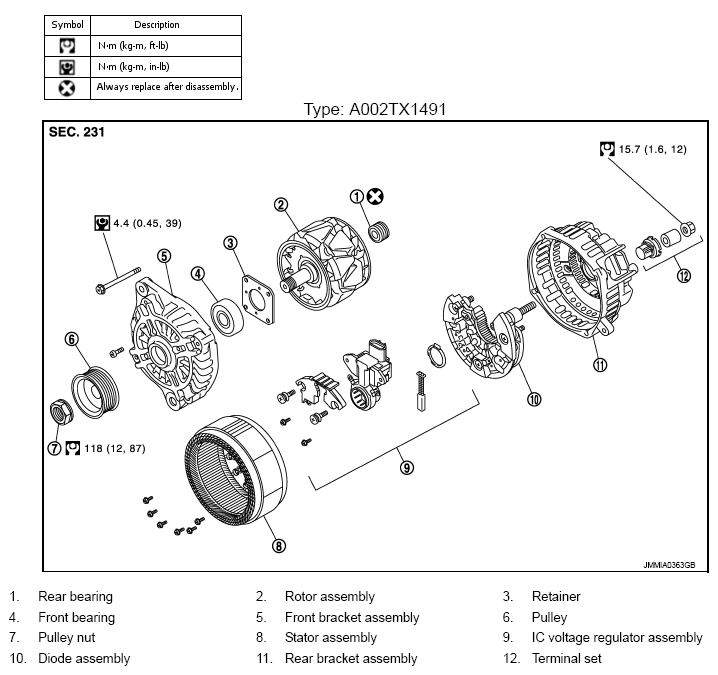

Fig 1: Disassembled View Of Alternator With Torque Specifications (Type: A002Tx1491)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
