Removal And Installation
>>
Center Console Assembly
>>
Exploded View
Exploded View

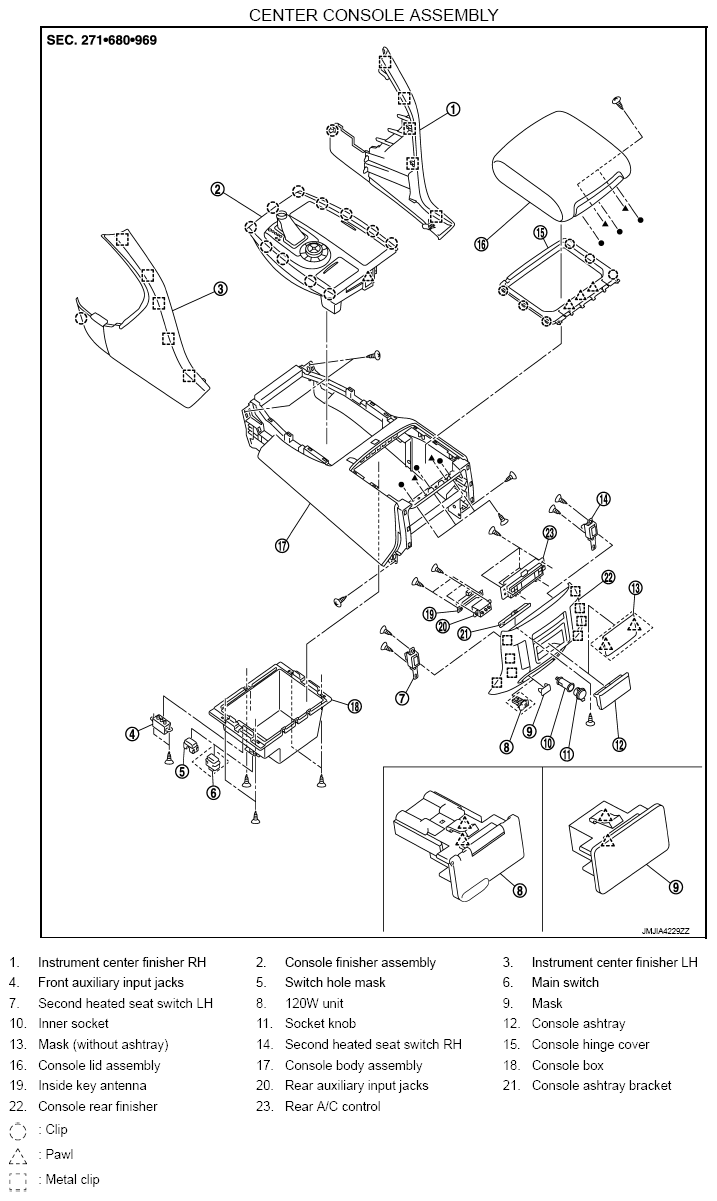

Fig 1: Identifying Center Console Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.

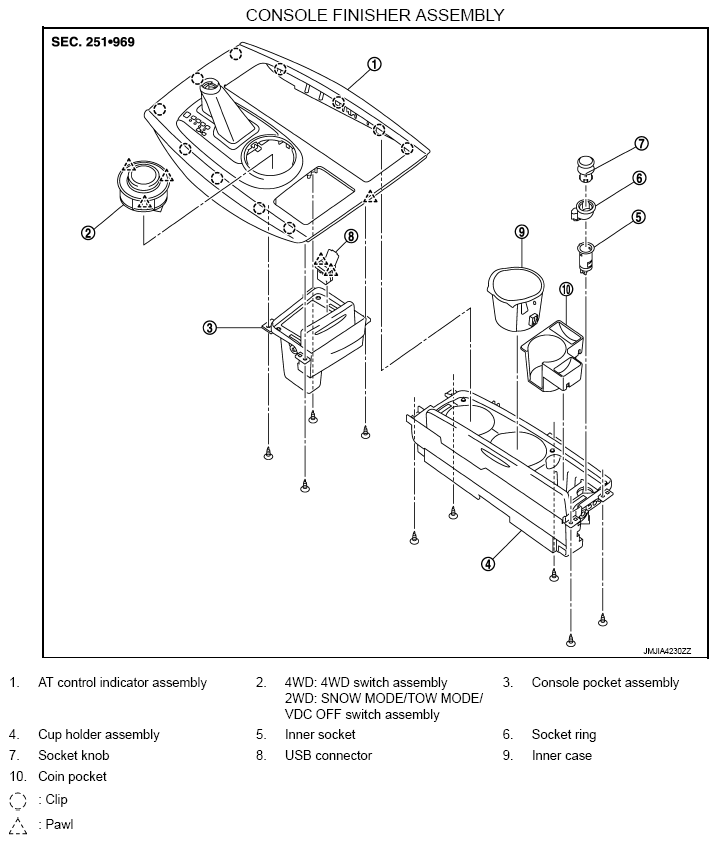

Fig 2: Identifying Console Finisher Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
