2WD: Exploded View
>>
Removal
2WD: Exploded View: Removal

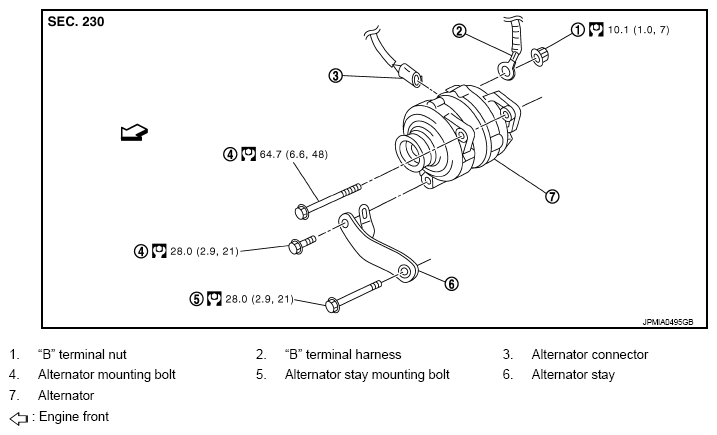

Fig 1: Exploded View Of Alternator With Torque Specifications (2WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
