AWD: Exploded View
>>
Removal
AWD: Exploded View: Removal

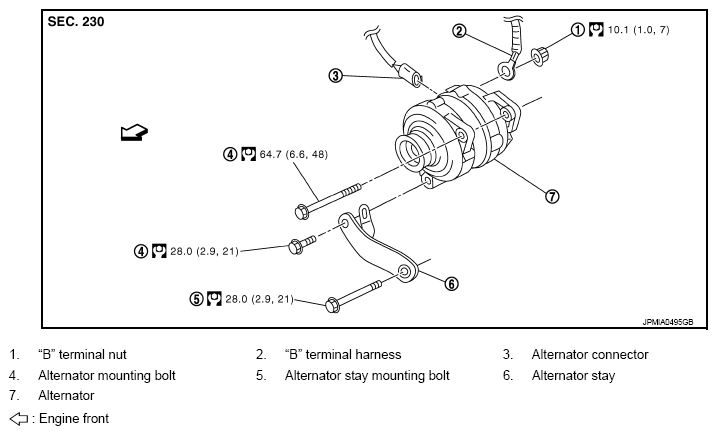

Fig 1: Exploded View Of Alternator (AWD) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
