Exploded View

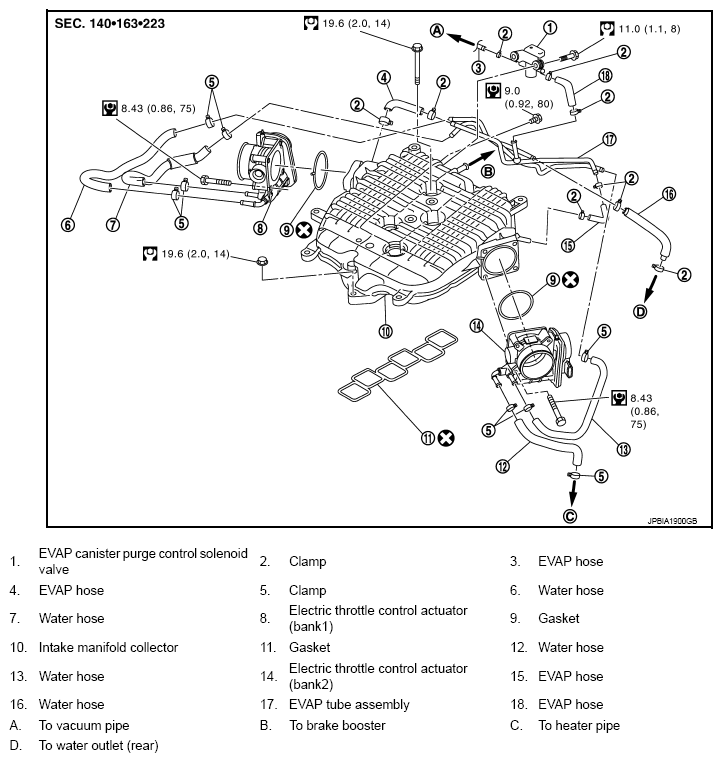

Fig 1: Exploded View Of Intake Manifold Collector With Torque Specifications

G08193254

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
