2WD: Exploded View

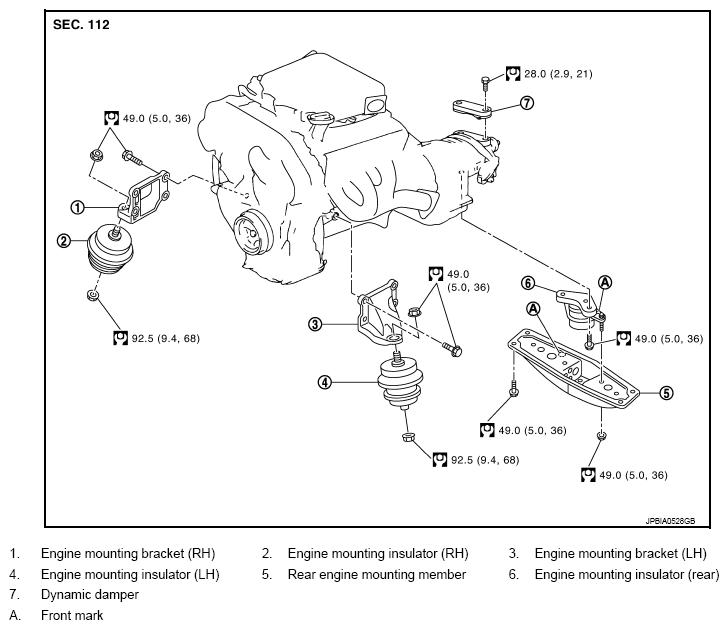

Fig 1: Exploded View Of Engine Assembly (2WD) With Torque Specifications

G08193375

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
