System Description
>>
Shift Mechanism
>>
Cross-Sectional View
>>
AWD Models
AWD Models

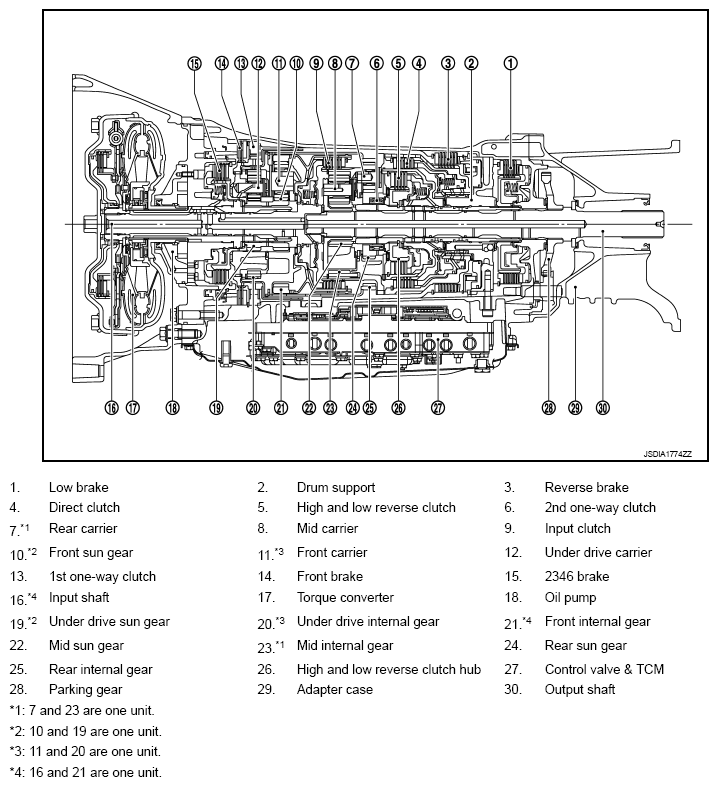

Fig 1: Cross-Sectional View Of (2WD Models) Shift Mechanism (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
