Exploded View

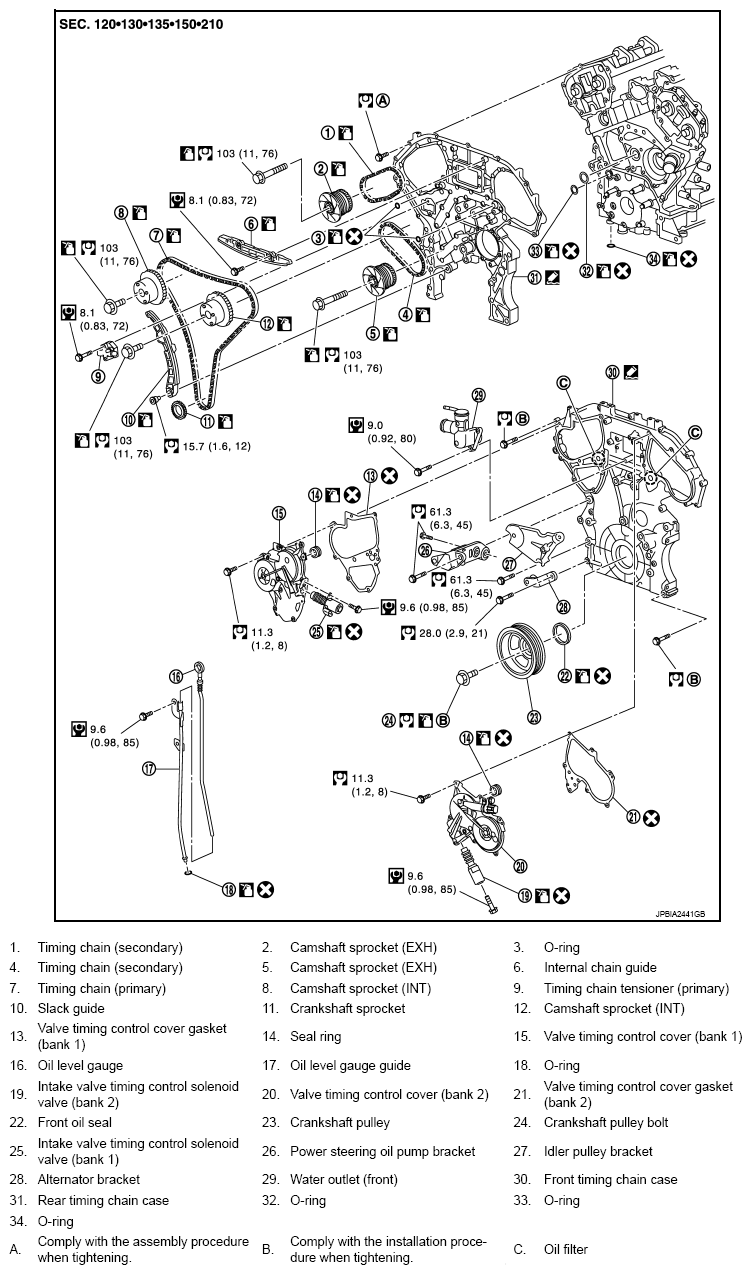

Fig 1: Exploded View Of Timing Chain With Torque Specifications

G08193293

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
