System Description
>>
Combination Switch Reading System
>>
System Diagram
System Diagram

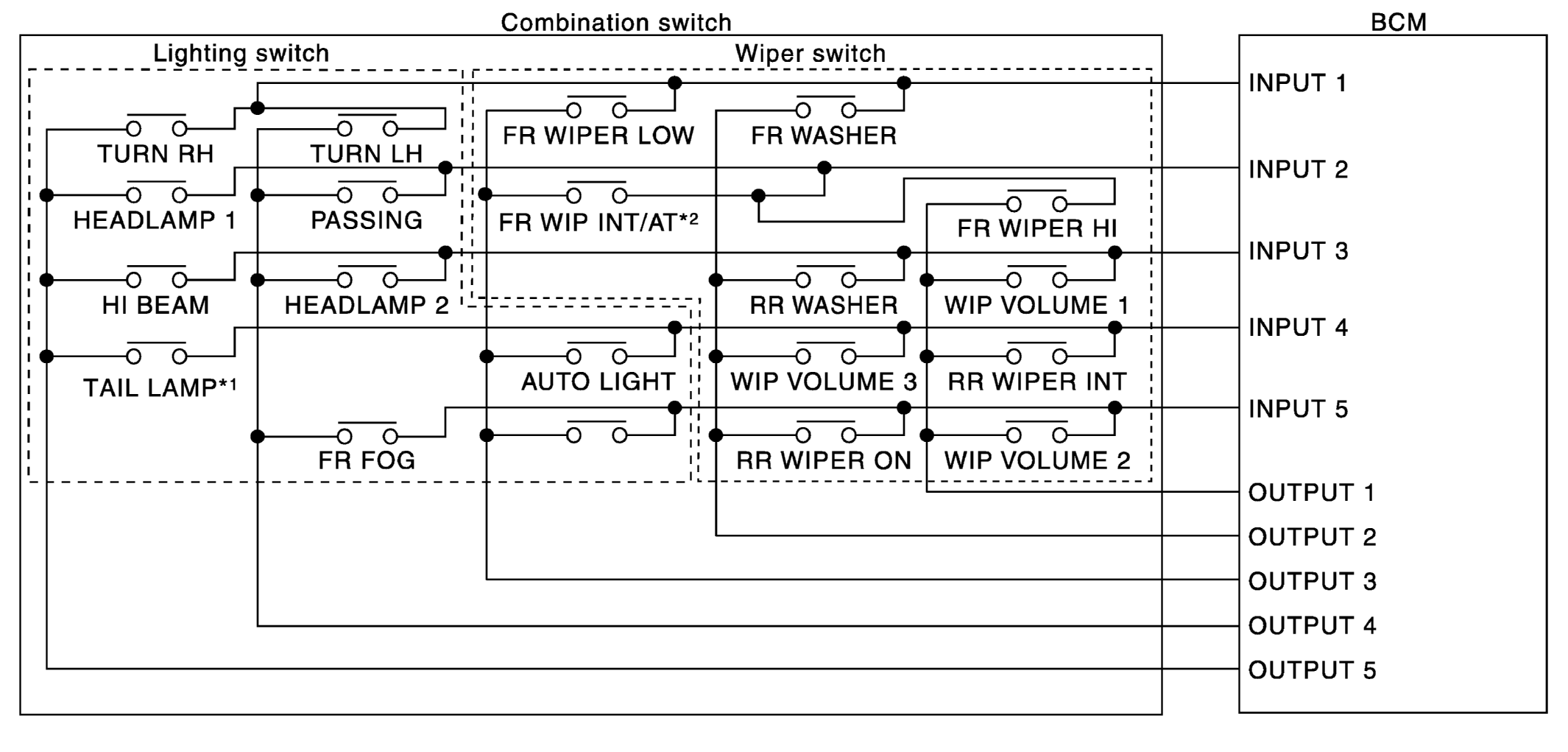

Fig 1: Combination Switch Reading - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
*1: TAIL LAMP switch links lighting switch 1ST position.
*2: "FR WIP INT/AT" is FR WIPER INT/AUTO.
Courtesy of NISSAN NORTH AMERICA, INC.
