Component Parts Location

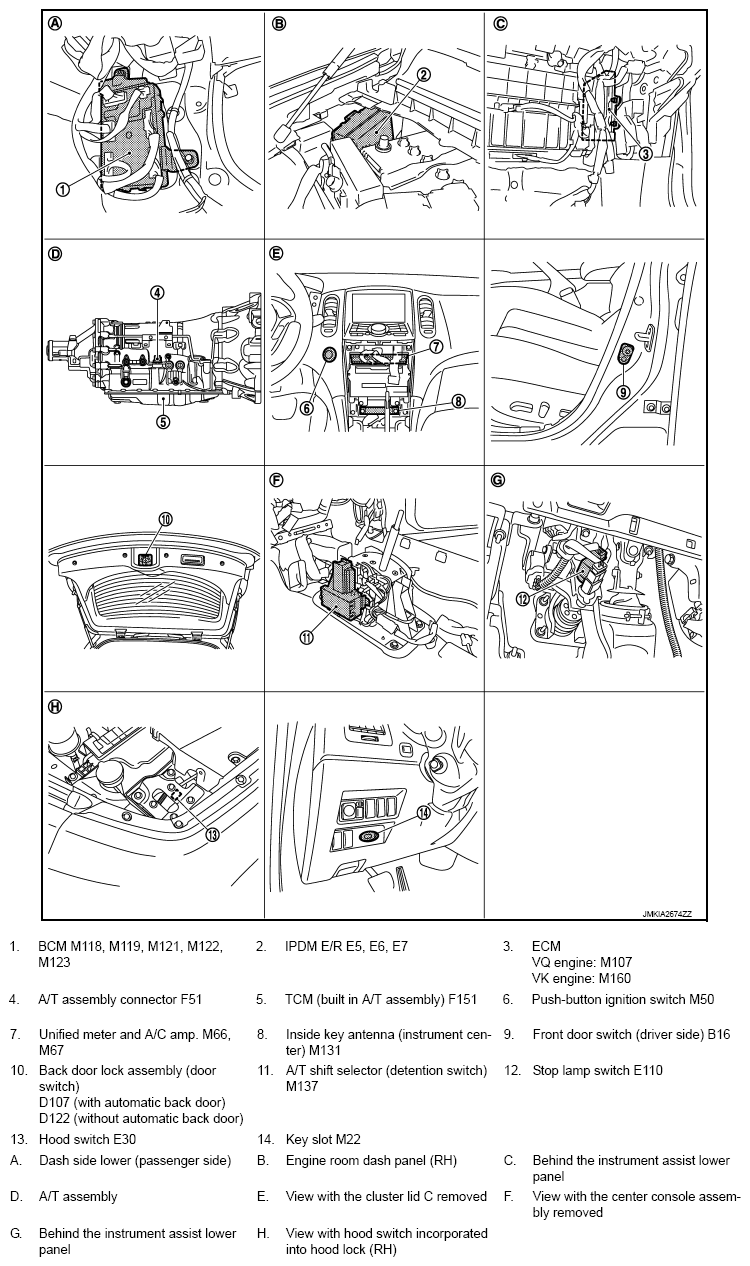

Fig 1: Intelligent Key System Components Location (1 Of 2)
G08227176Courtesy of NISSAN NORTH AMERICA, INC.

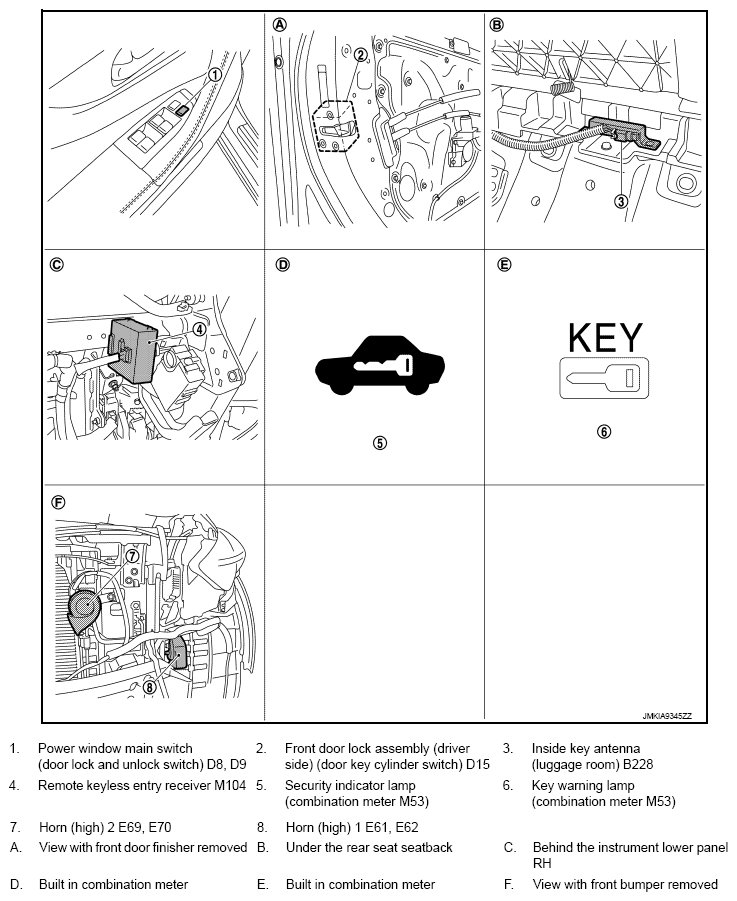

Fig 2: Intelligent Key System Components Location (2 Of 2)
G08227177Courtesy of NISSAN NORTH AMERICA, INC.
