Exploded View

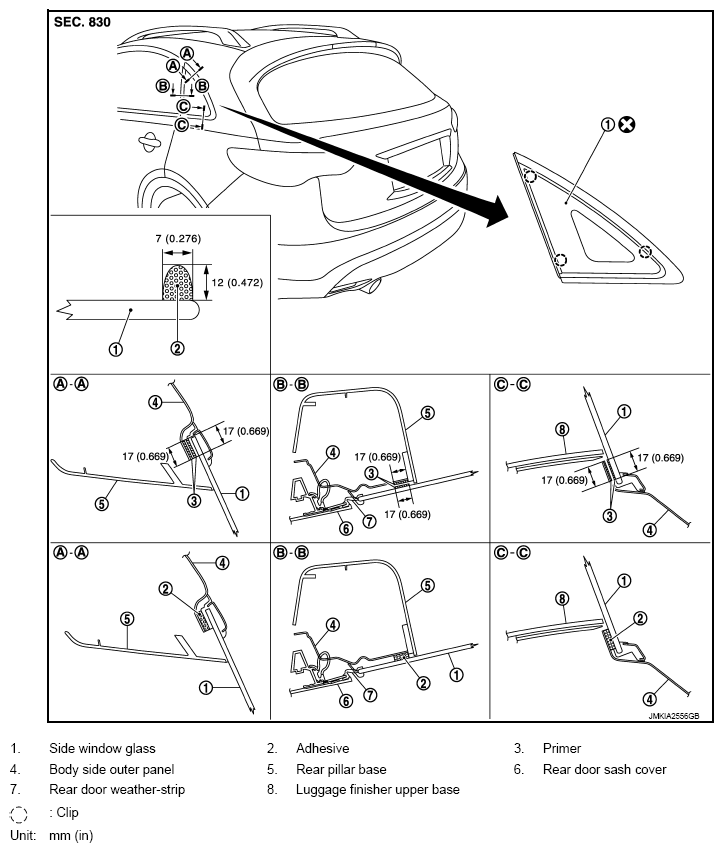

Fig 1: Exploded View Of Side Window Glass

G08227290

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
