System Diagram

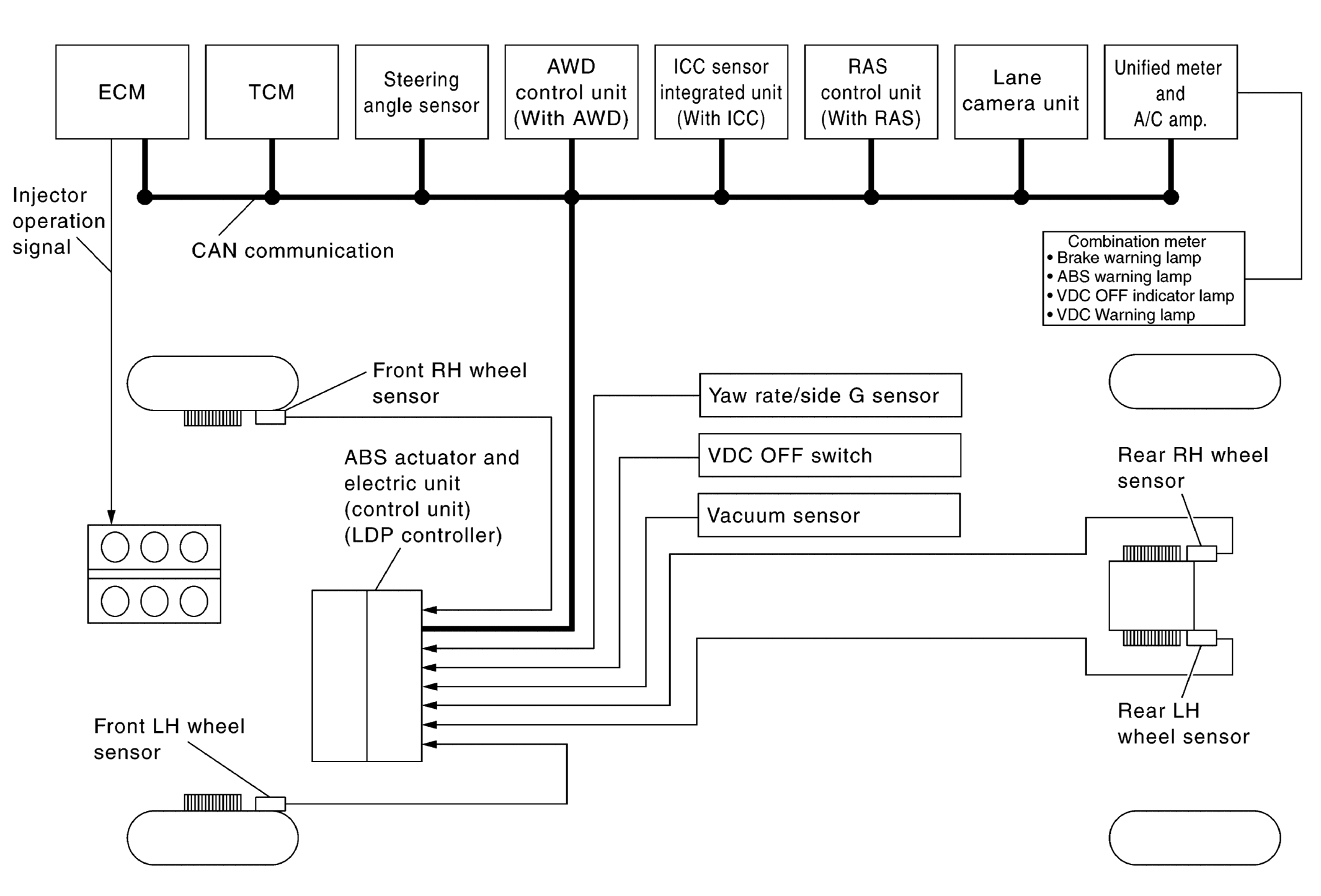

Fig 1: ABS - System Diagram With LDP (VK50VE Models)
G08218031Courtesy of NISSAN NORTH AMERICA, INC.

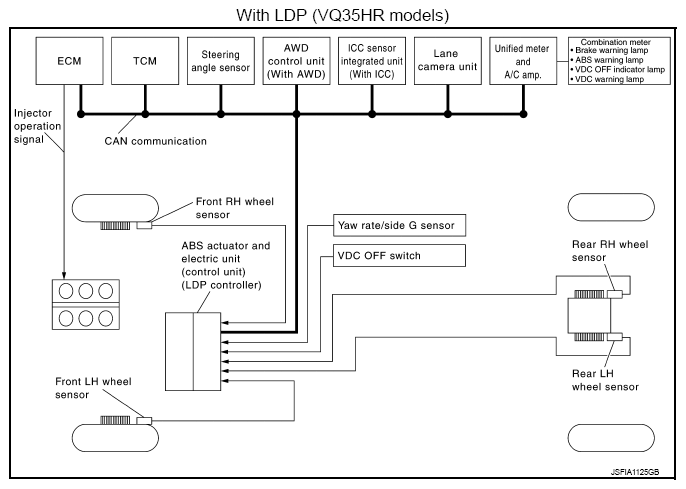

Fig 2: ABS - System Diagram With LDP (VQ35HR Models)
G08218032Courtesy of NISSAN NORTH AMERICA, INC.

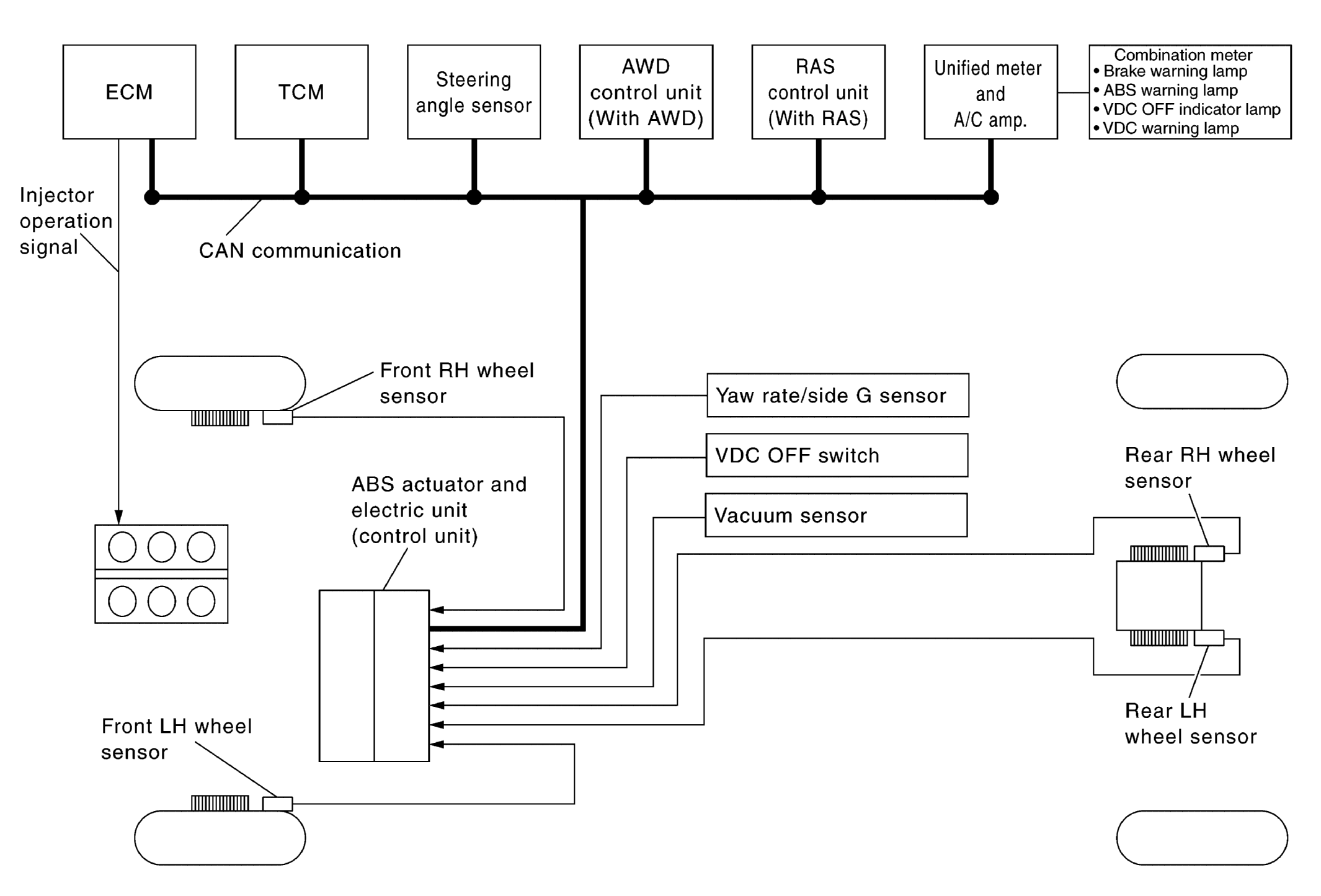

Fig 3: ABS - System Diagram Without LDP (VK50VE Models)
G08218033Courtesy of NISSAN NORTH AMERICA, INC.

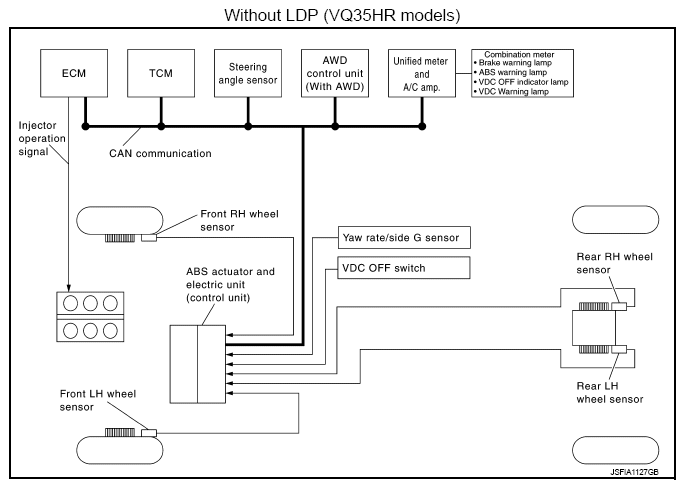

Fig 4: ABS - System Diagram Without LDP (VQ35HR Models)
G08218034Courtesy of NISSAN NORTH AMERICA, INC.
