Disassembly and Assembly: Notes

DISASSEMBLY

1. Remove center console assembly. Refer to "REMOVAL AND INSTALLATION ".
2. Remove console lid assembly.
   1. Open the console lid.
   2. Remove console hinge mask (1) fixing pawls with remover tool (A).

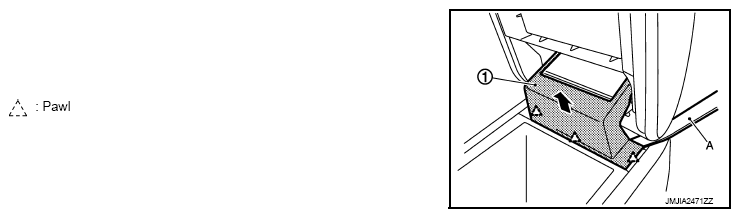

      Fig 1: Removing Console Hinge Mask Using Remover Tool

      Courtesy of NISSAN NORTH AMERICA, INC.
   3. Remove console lid assembly (1) fixing screws (A), and then remove console lid assembly.

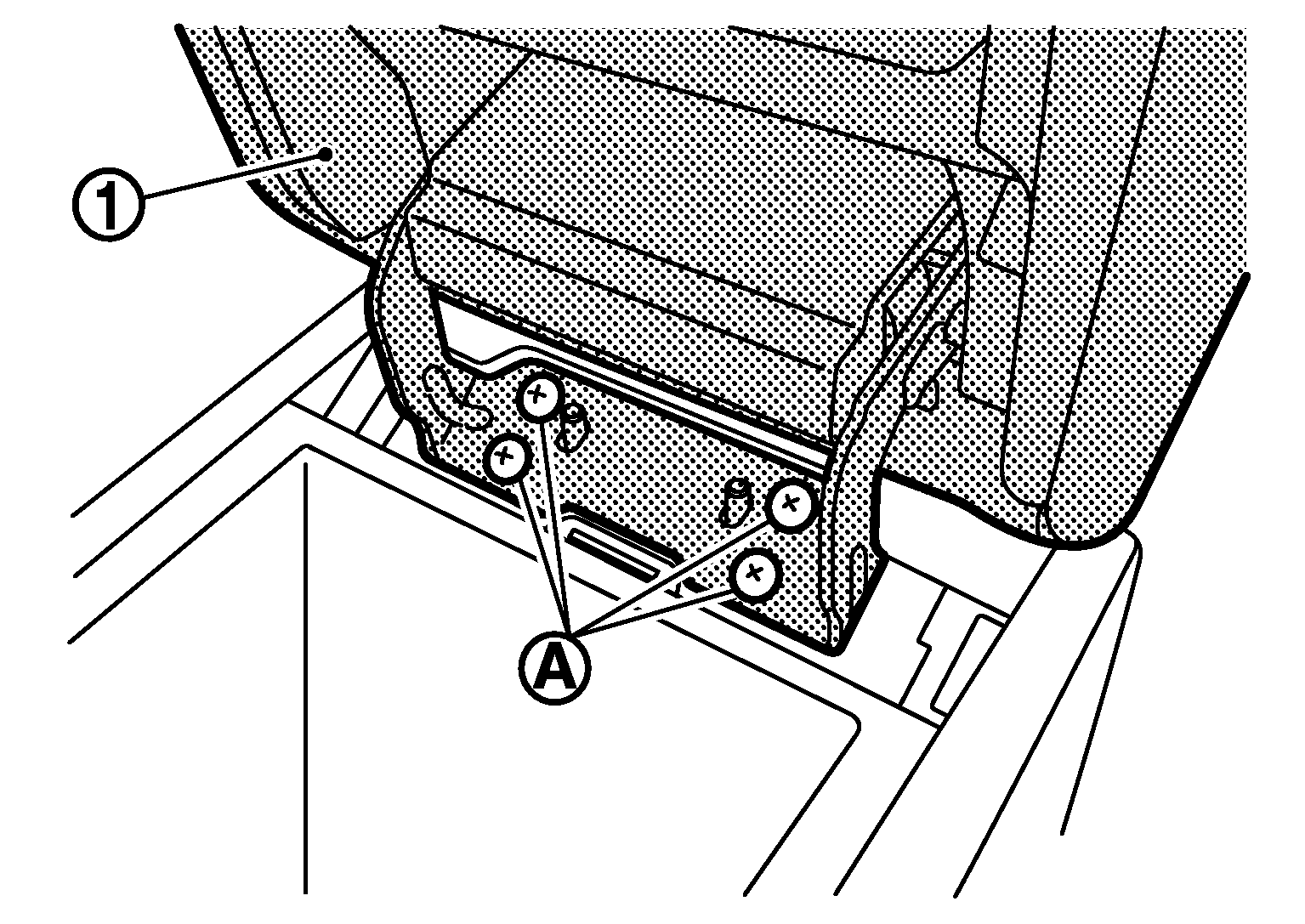

      Fig 2: Identifying Console Lid Assembly And Fixing Screws

      Courtesy of NISSAN NORTH AMERICA, INC.
3. Remove console box assembly.
   1. Remove console pad LH.
      • Remove console pad LH (1) fixing screws (A).
      • Pull toward the arrow direction shown in the figure.

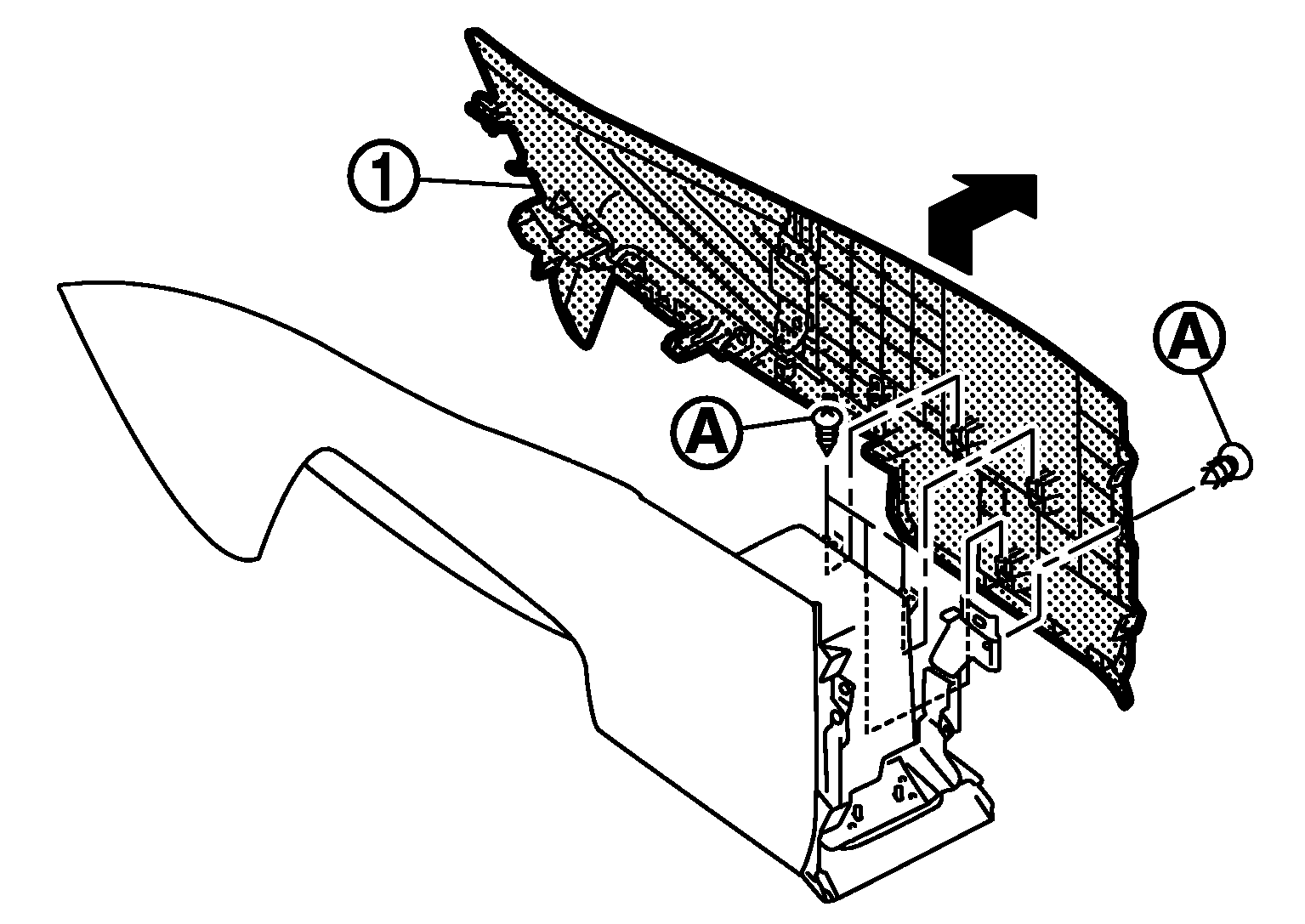

      Fig 3: Removing Console Pad LH

      Courtesy of NISSAN NORTH AMERICA, INC.
   2. Remove console pad RH.
      • Remove console pad RH (1) fixing screws (A).
      • Pull toward the arrow direction shown in the figure.
      • Remove console rear bracket (2).
      • Remove console box assembly (3).

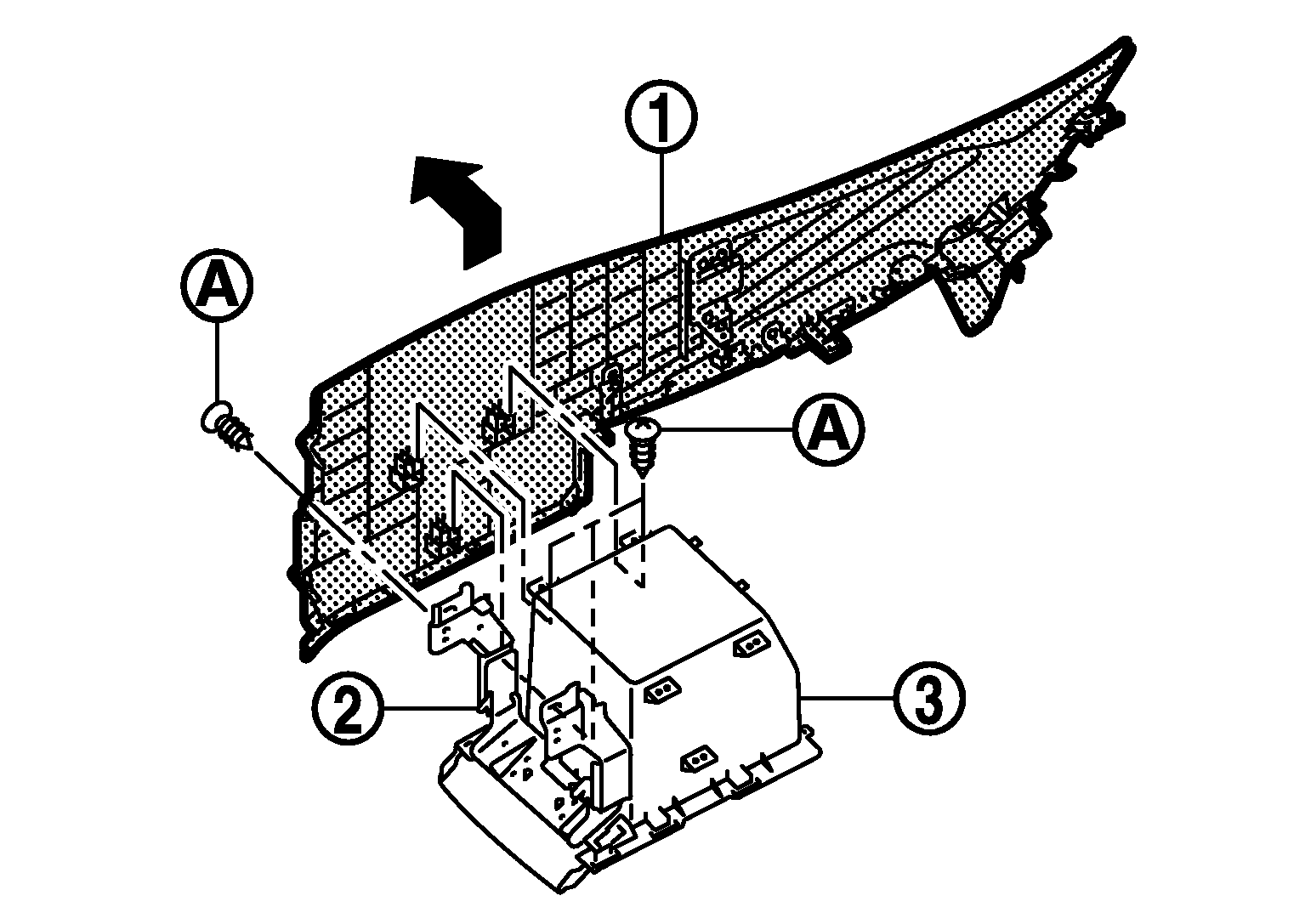

   Fig 4: Removing Console Pad RH

   Courtesy of NISSAN NORTH AMERICA, INC.
   NOTE:

   • Removal and installation of USB connector: Refer to "REMOVAL AND INSTALLATION ".
   • Removal and installation of console power socket. Refer to "CONSOLE POWER SOCKET: REMOVAL AND INSTALLATION ".
