Engine Control System (VK50VE) - FX50 - Diagnostic Introduction
>>
System Description
>>
Engine Control System
>>
System Diagram
System Diagram

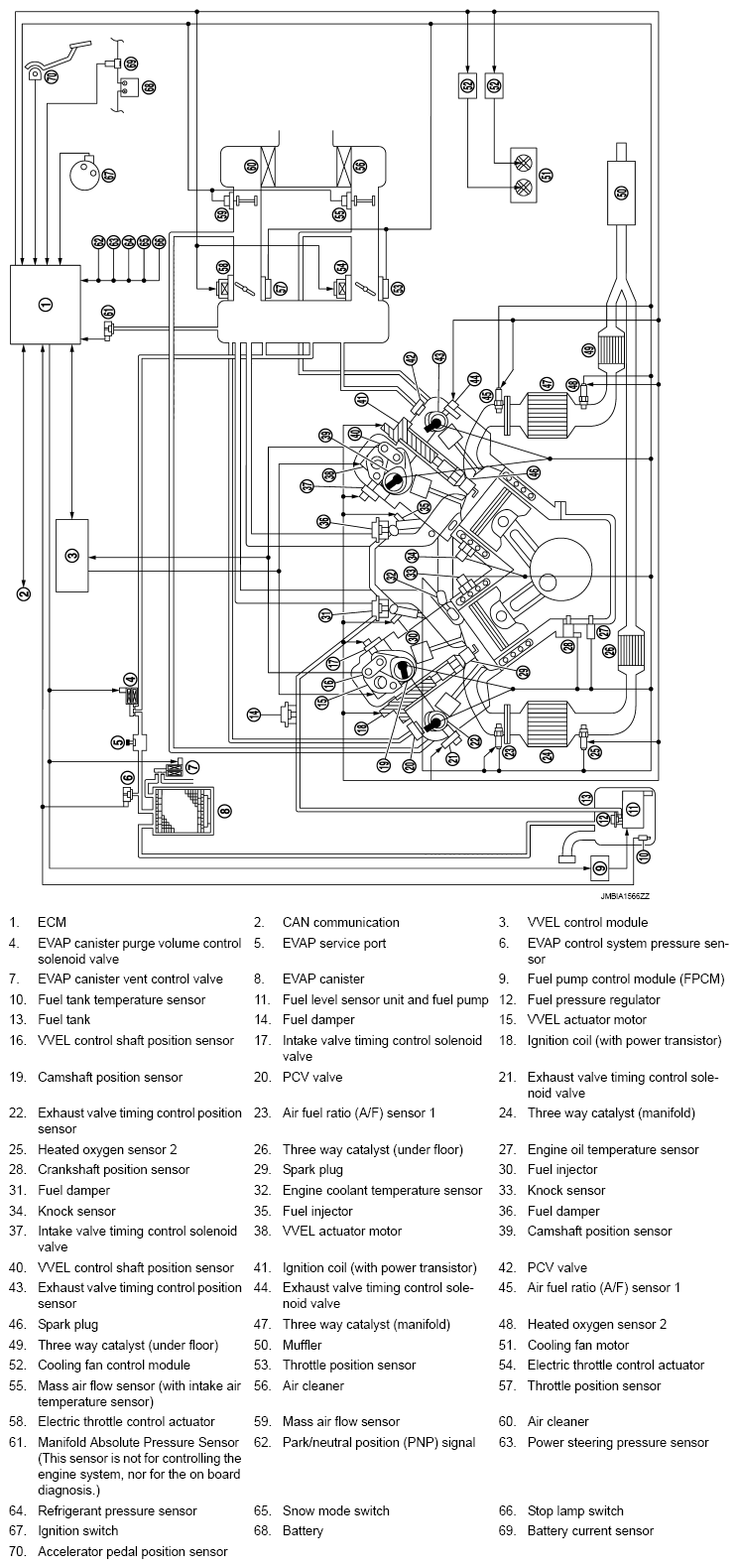

Fig 1: Engine Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
