Transmission
>>
Automatic Transmission
>>
System Description
>>
Shift Pattern Control
>>
Manual Mode
>>
MANUAL MODE: System Diagram
MANUAL MODE: System Diagram

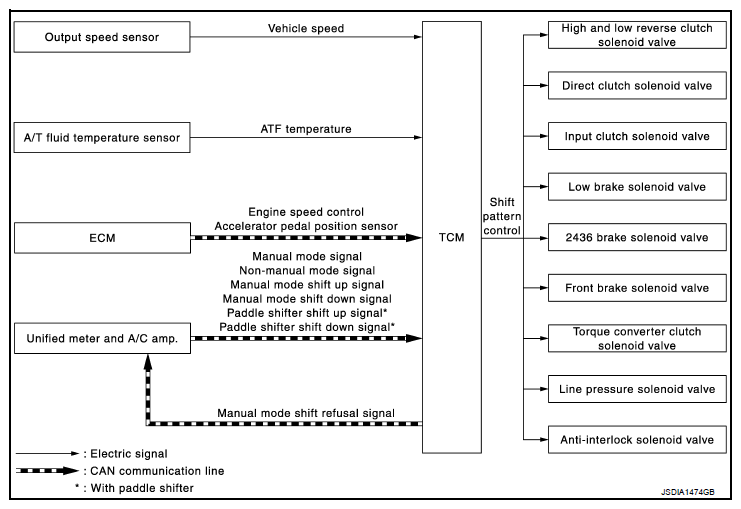

Fig 1: Shift Pattern Control - System Diagram (Manual Mode)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
