System Description
>>
AWD System
>>
System Diagram
>>
Control Diagram
Control Diagram

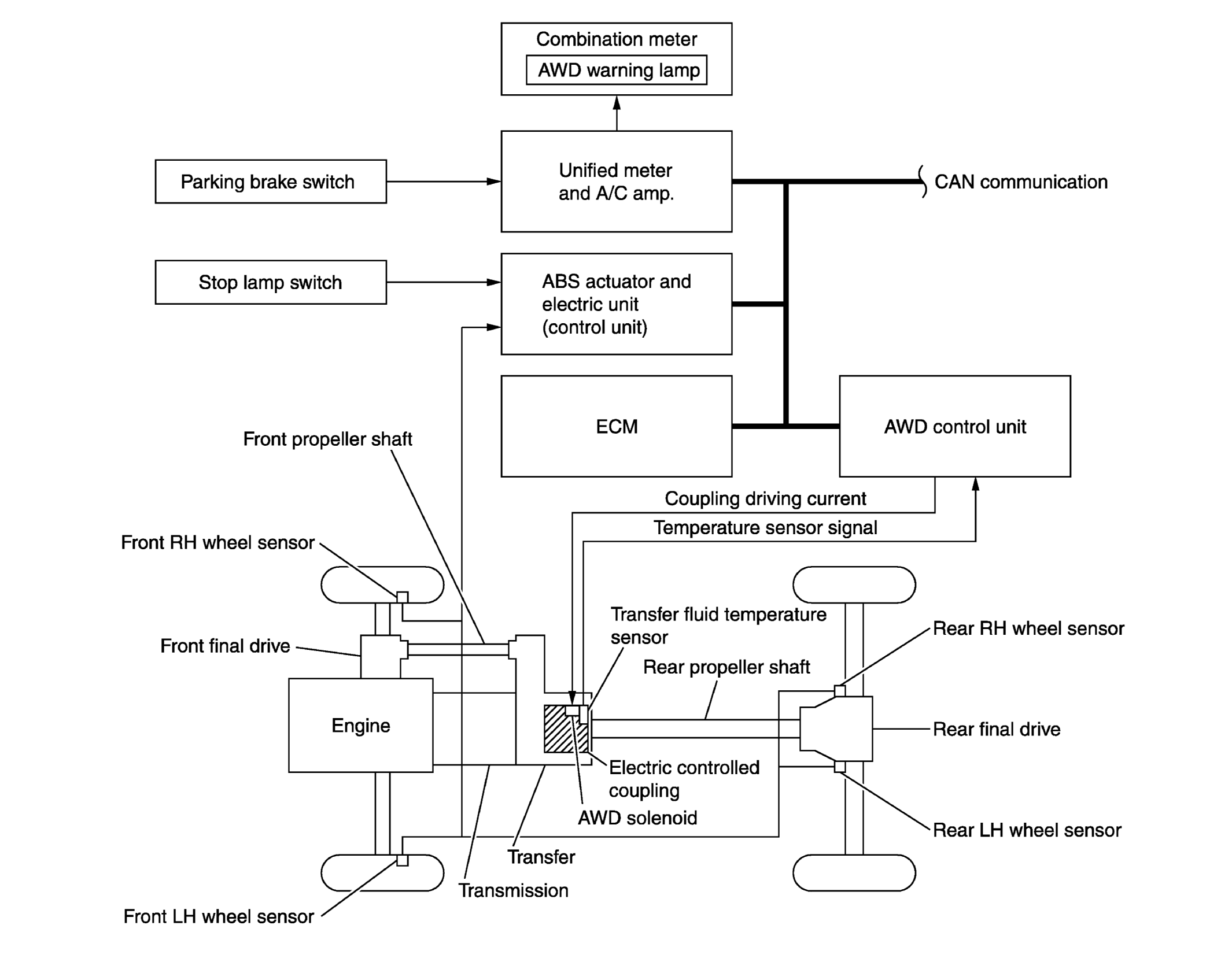

Fig 1: AWD - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
