Without CONSULT

  1. Remove fuel pump fuse (1) located in IPDM E/R (2).
  2. Start engine.
  3. After engine stalls, crank it two or three times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.

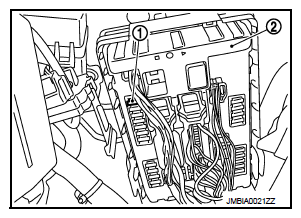

    Fig 1: Identifying Fuel Pump Fuse And IPDM E/R
    G08451732Courtesy of NISSAN NORTH AMERICA, INC.
