Exploded View
>>
Disassembly
Exploded View: Disassembly

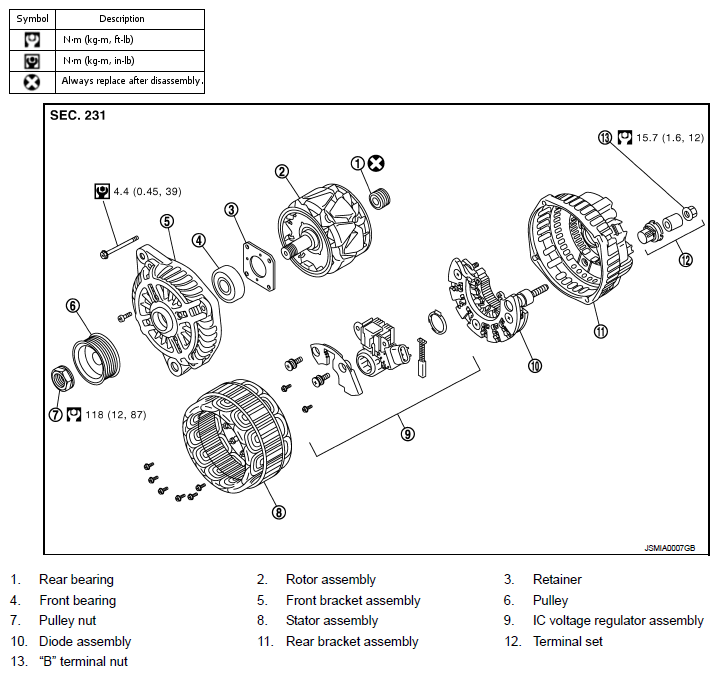

Fig 1: Exploded View Of Alternator With Torque Specifications (Type A003TJ1991)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
COMPONENTS
for symbols in the figure.
