Infiniti
>>
2012
>>
M35h
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Removal And Installation
>>
Front Regulator
>>
Exploded View
Exploded View

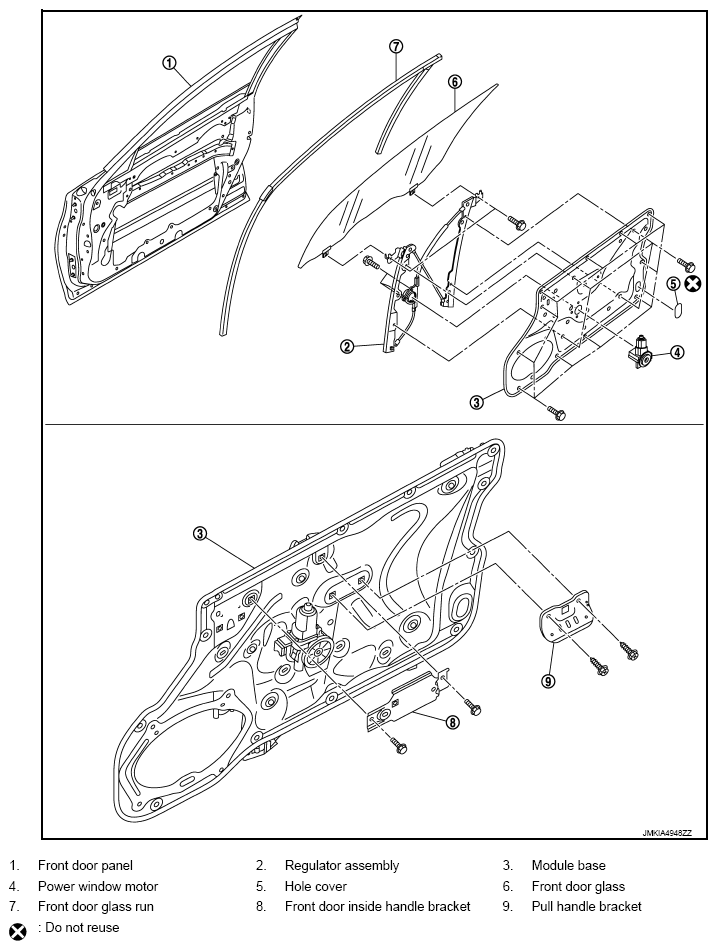

Fig 1: Exploded View Of Front Regulator With Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
