Exploded View

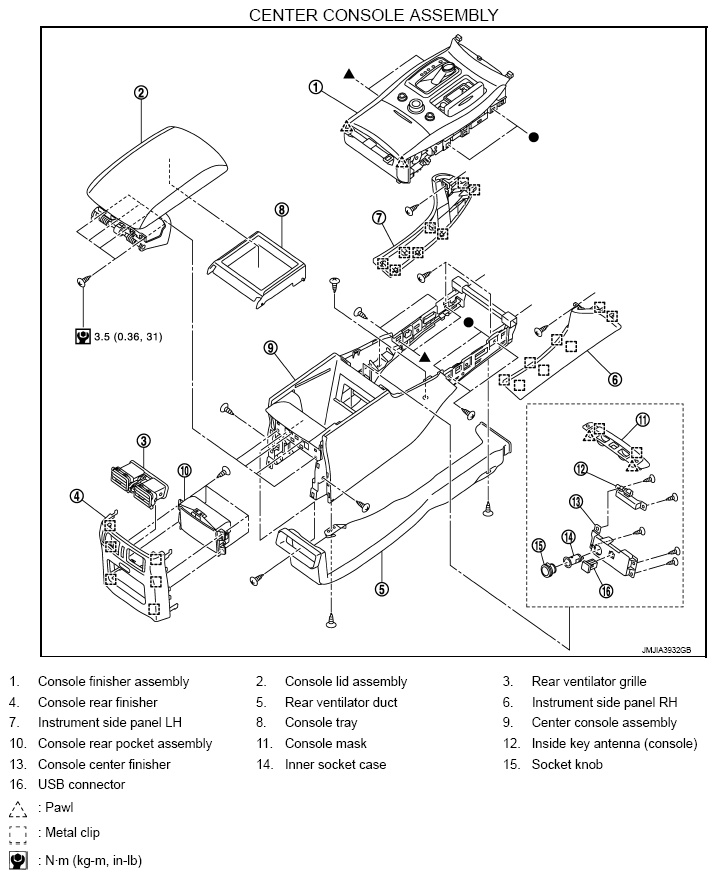

Fig 1: Exploded View Of Center Console Assembly With Torque Specification (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

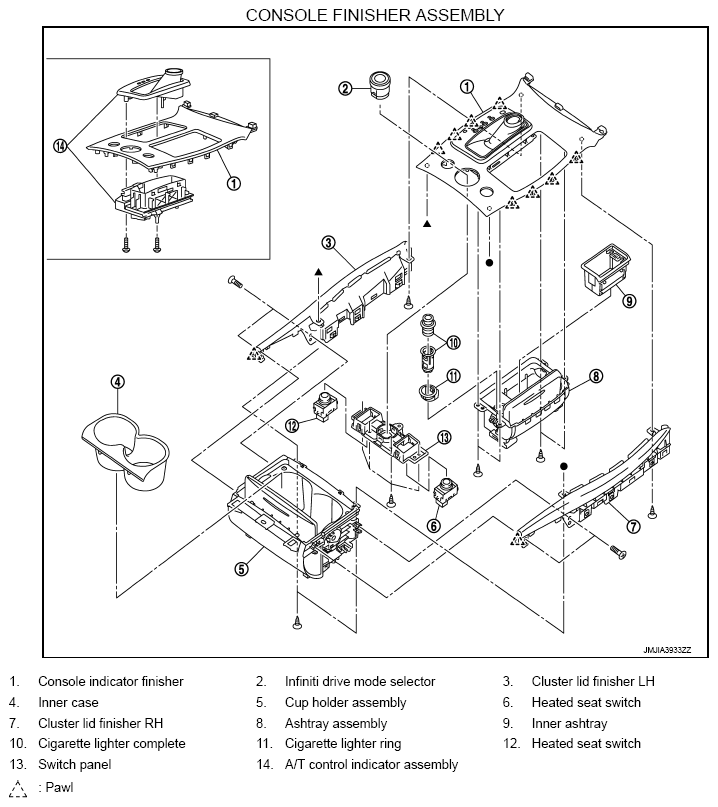

Fig 2: Exploded View Of Console Finisher Assembly (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
