Inside Mirror
>>
Exploded View
Exploded View

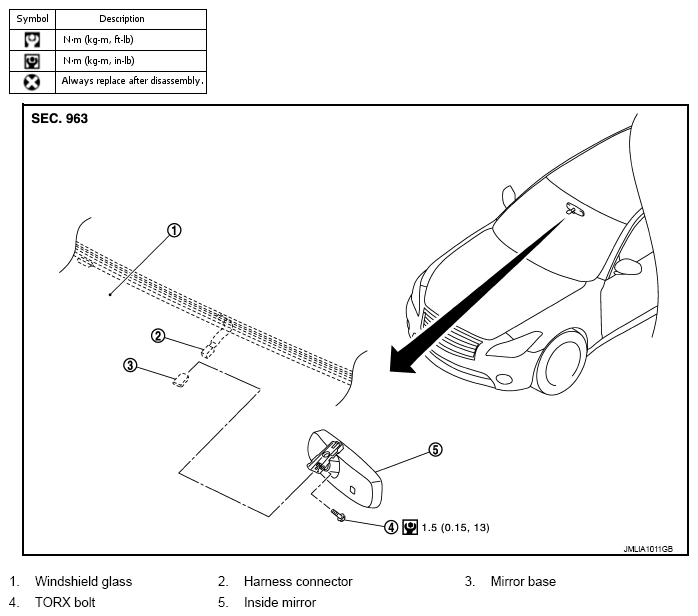

Fig 1: Exploded View Of Inside Mirror With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for the symbols in the figure.
