Exploded View

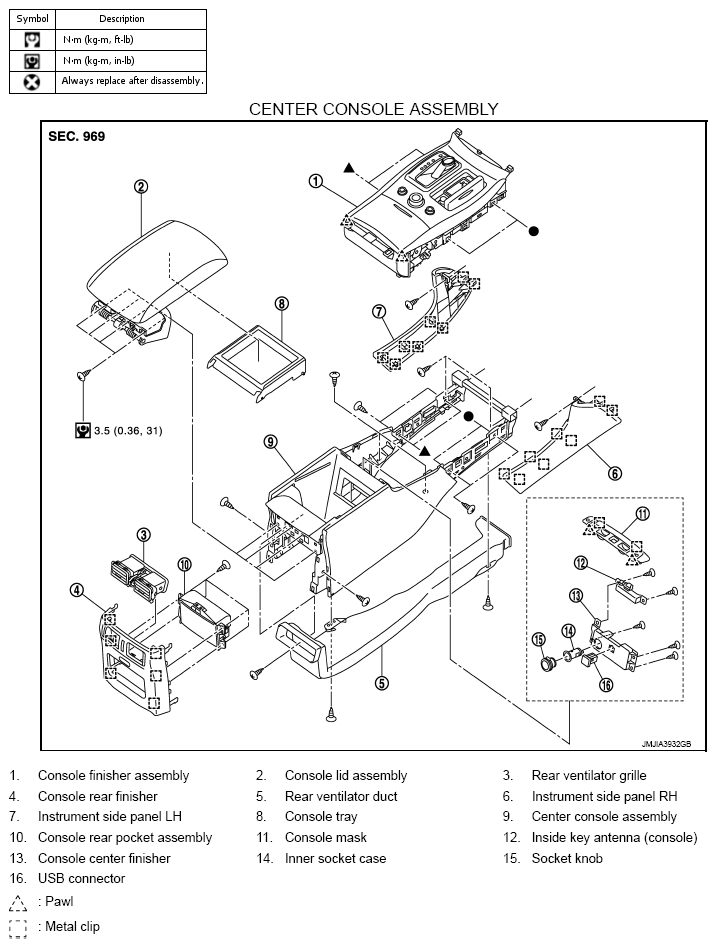

Fig 1: Exploded View Of Center Console Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

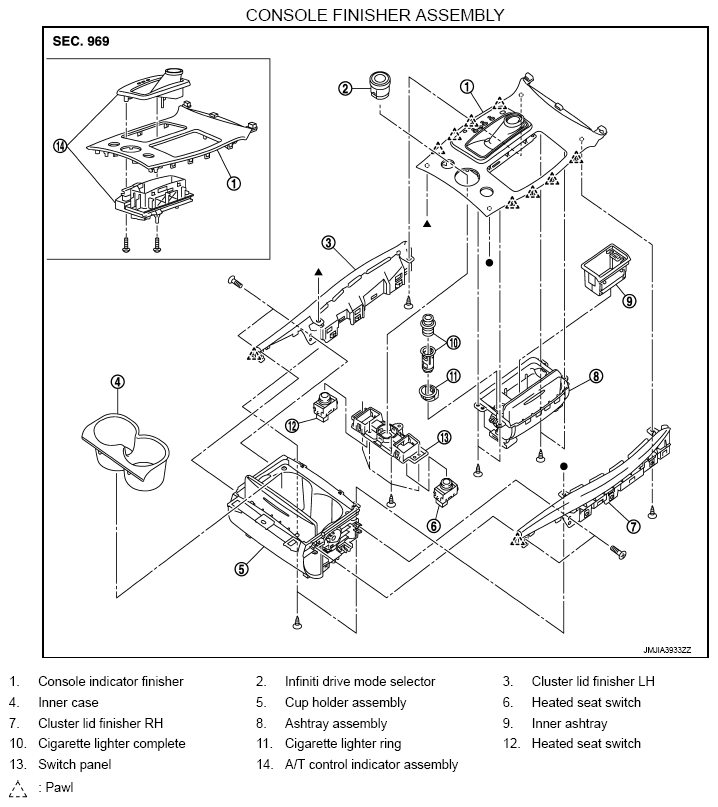

Fig 2: Exploded View Of Console Finisher Assembly

Courtesy of NISSAN NORTH AMERICA, INC.
