Home >> Infiniti >> 2012 >> M37 Base >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Panel >> Removal And Installation >> Instrument Panel Assembly >> Exploded View

Exploded View

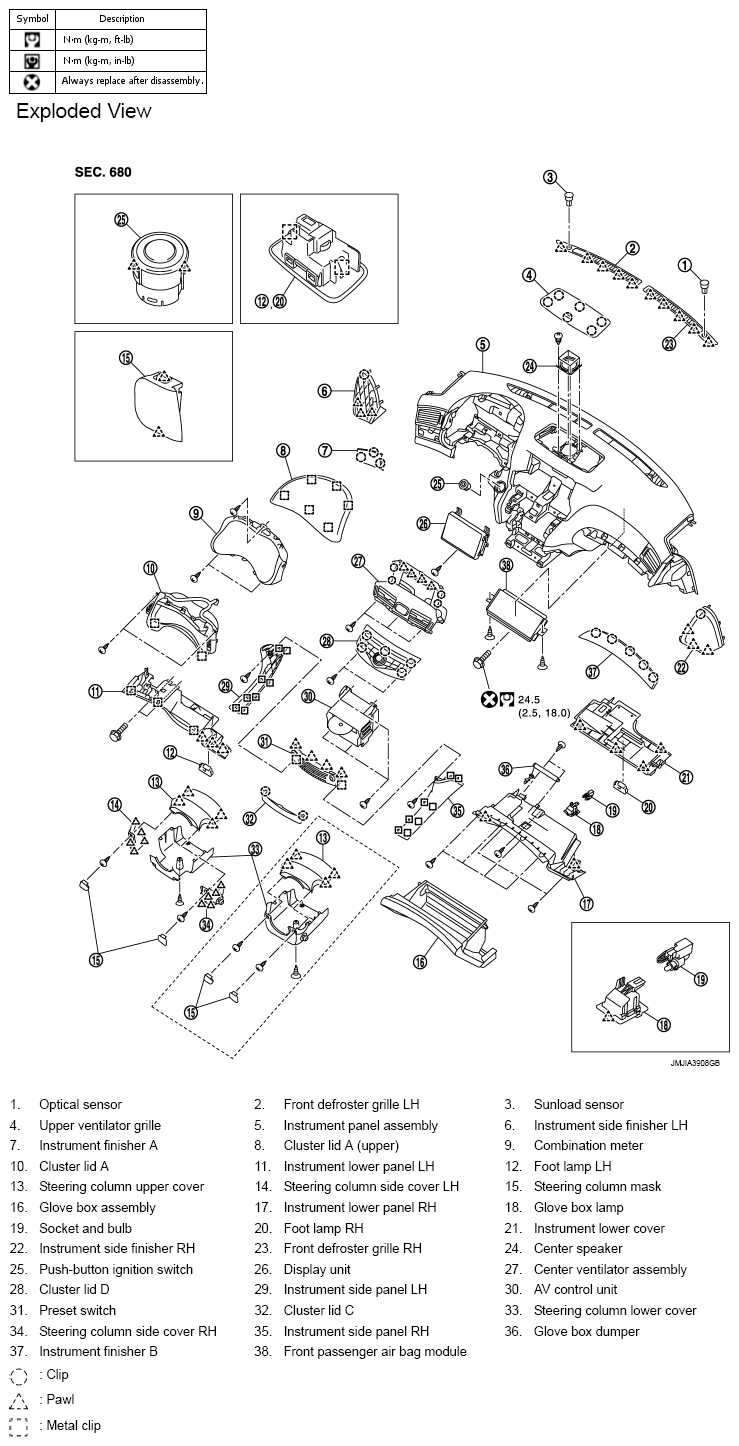

Fig 1: Exploded View Of Instrument Panel Assembly With Torque Specifications

G08658303

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
