Oil Pump: Assembly
Note the following, and assemble in the reverse order of disassembly.
Install oil pump inner rotor with the groove faced to oil pump cover side.

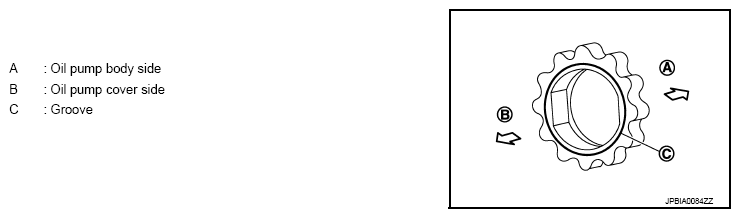

Fig 1: Identifying Oil Pump Inner Rotor Orientation
Courtesy of NISSAN NORTH AMERICA, INC.
