System Description
>>
System
>>
System Diagram
System Diagram

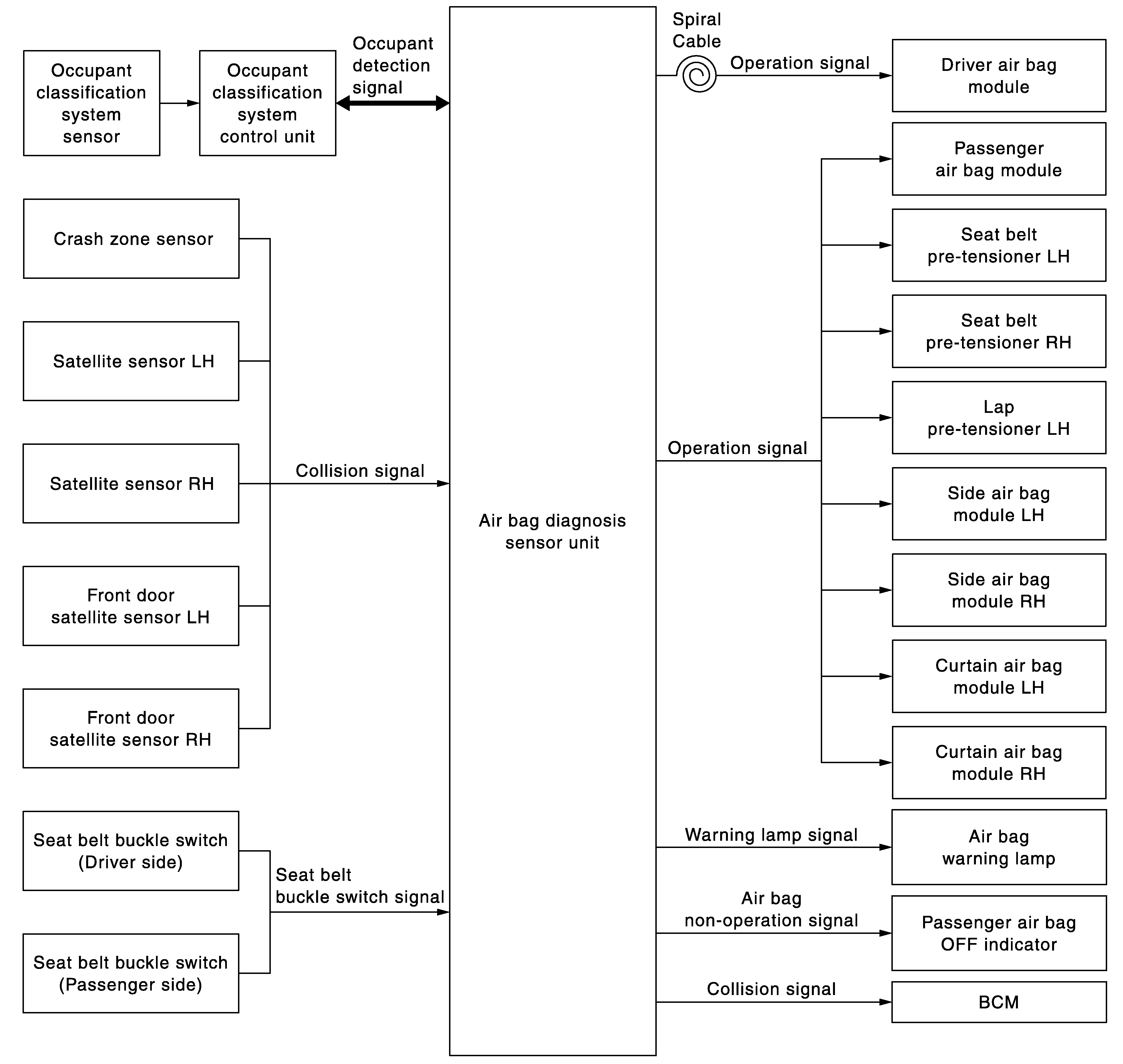

Fig 1: Identifying SRS Airbag Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
