4WAS SYSTEM: Sectional View

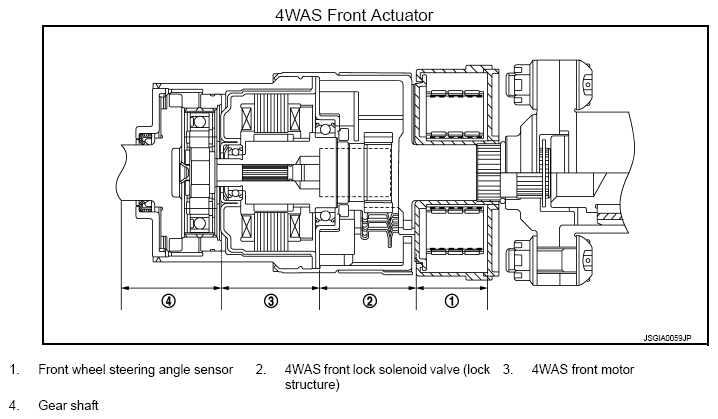

Fig 1: Sectional View Of Front Actuator (4WAS System)
G08649805Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Sectional View Of Rear Actuator (4WAS System)
G08649806Courtesy of NISSAN NORTH AMERICA, INC.
